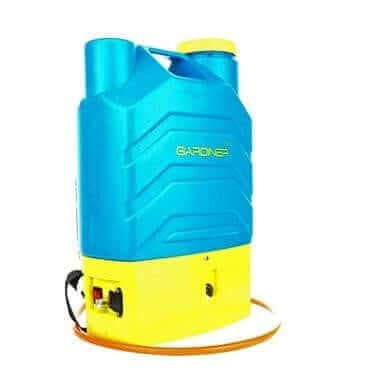

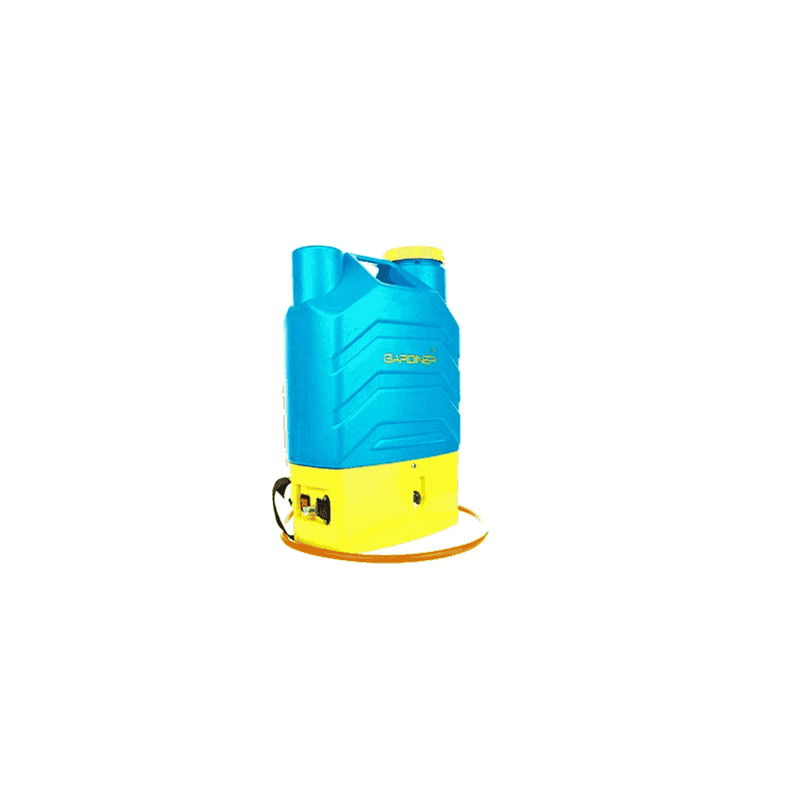

The Gardiner Backpack V3 is one of the most practical pure water delivery systems for residential window cleaning — compact, self-contained, and independent of a vehicle-mounted cart. But the battery connection trips up more people than it should, especially on first setup or after a long off-season. Here is how to connect your Gardiner backpack battery correctly and keep it running reliably.

What You Need

• Gardiner Backpack V3 unit
• Gardiner Backpack Charger (shipped with the pack or available separately)
• The internal lithium battery (pre-installed in newer units)

Step-by-Step Battery Connection

1. Open the battery compartment. Unclip the rear panel of the backpack. The battery sits in a sealed housing with a waterproof connector.
2. Check connector orientation. The Gardiner battery uses a keyed plug — it only seats one way. Align the flat edge of the connector with the matching recess on the battery terminal block.
3. Push until the connector clicks. A half-seated plug is the single most common cause of "dead pump" calls. Press firmly until you feel and hear the latch engage.
4. Close the compartment and test. Flip the on/off switch. You should hear the pump prime within two seconds. If the pump does not start, open the compartment and reseat the connector.

Charging

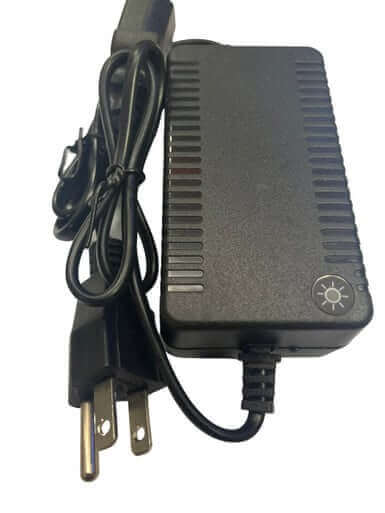

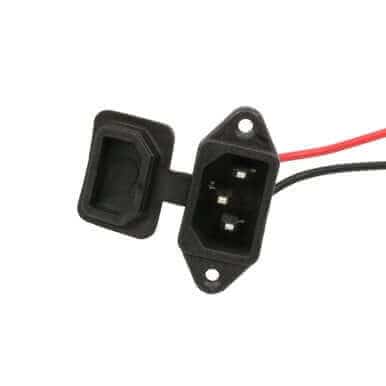

Use only the Gardiner Backpack Charger. The charger socket is on the outside of the unit — you do not need to open the battery compartment to charge. A full charge from empty takes roughly 4–5 hours. The LED on the charger turns green when complete.

Do not leave the pack on the charger for days at a time. Lithium cells tolerate occasional overnight charges, but habitual overcharging shortens cycle life. Charge before the job, unplug when done.

Troubleshooting

Pump does not start

• Reseat the battery connector — this fixes it 90% of the time.

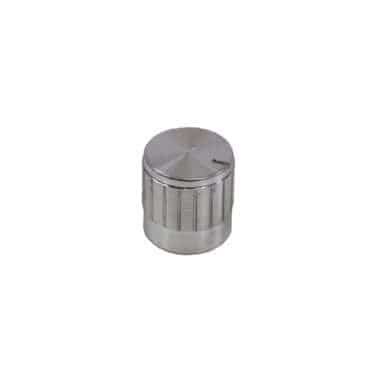

• Check that the flow control knob is not turned fully off.
• Verify the charger LED showed green after the last charge cycle.

Weak or pulsing flow

• Low battery. Charge the pack.
• Air in the line. Open the flow knob fully, hold the brush end below the pack, and let it purge for 10–15 seconds.

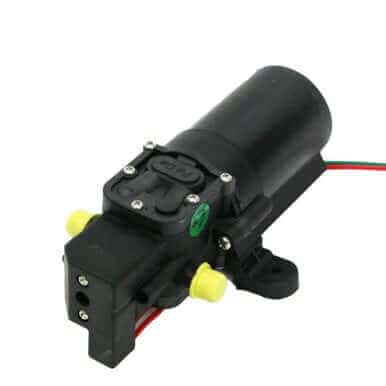

• Worn pump diaphragm. If the unit has high hours, consider the Gardiner Replacement Pump.

Charger LED does not illuminate

• Confirm the outlet is live.
• Inspect the charger barrel connector for debris or corrosion.
• If the charger is damaged, replace it — do not use a generic barrel-plug charger. The voltage and polarity must match the Gardiner spec.

Maintaining Battery Life

Store the backpack indoors during winter. Lithium batteries lose capacity permanently when stored below freezing for extended periods. A climate-controlled shop or garage is fine — the bed of a truck is not.

If you are not using the pack for more than a month, charge it to approximately 60% before storing. A full charge or a dead-flat state during long storage both degrade lithium cells faster than a mid-range state of charge.

Compatible Accessories

The Gardiner Backpack works best paired with a lightweight pole and the right fittings:

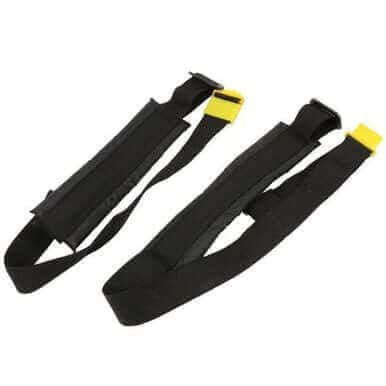

• Replacement straps — the originals wear out; aftermarket webbing rarely fits the buckle system.
• Flow speed controller — lets you dial down output for detail work or first-floor residential without cycling the pump on and off.

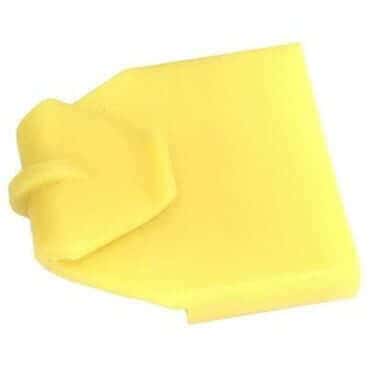

• Strap hook — replacement for the load-bearing hook that connects the strap to the frame.

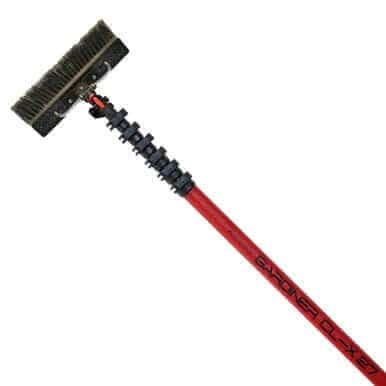

• Gardiner CLX 27ft Pole — a solid residential match for the backpack's flow rate.

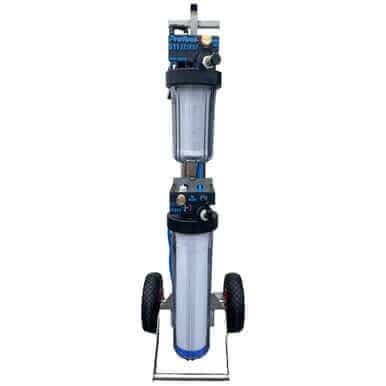

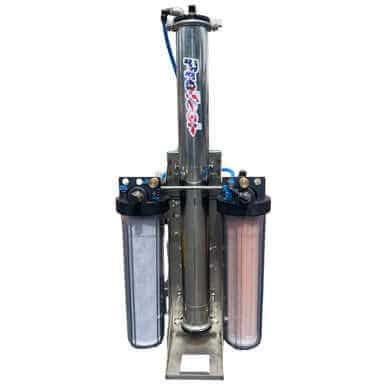

For contractors running a full vehicle-mounted system, the ProTool HiFlo Pure Water Cart or ProTool 511 Cart will be a better daily driver. The backpack is the right tool for walk-up jobs, tight access, and sites where running hose from a truck is impractical.
