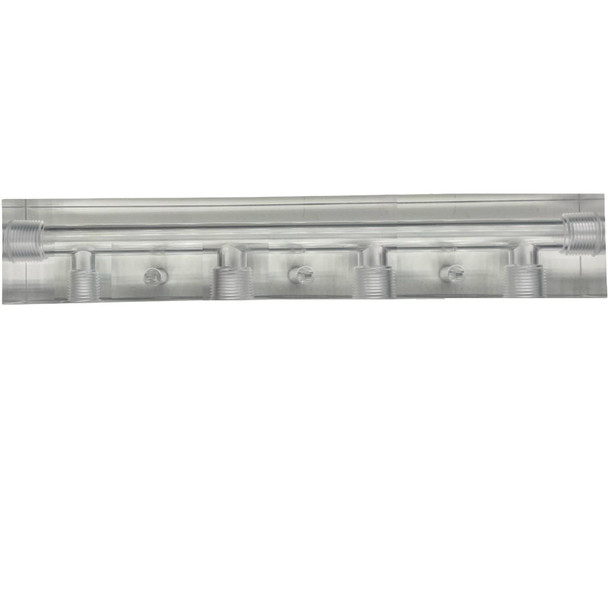

Manifold – Clear Acrylic 6-Port Softwash Metering Block

The Clear Acrylic 6-Port Manifold is engineered for accurate and efficient mixing of Softwash cleaning solutions including water, sodium hypochlorite (SH), and surfactants.

Precision-machined from solid clear acrylic, this manifold provides strength, chemical resistance, and full visual monitoring of internal flow during proportioning.

High-Flow Design – Built for Professional Softwash Systems

Large Ports for Maximum Flow – Over 20 GPM Capacity

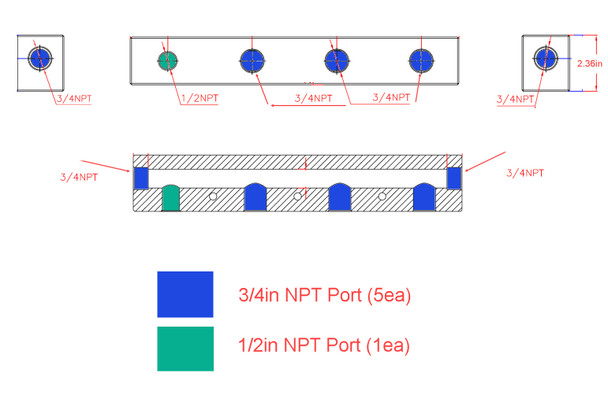

Port Configuration

(2) End Ports – 3/4" NPT

(4) Side Ports Along the Long Face

• • (1) 1/2" NPT
  • (3) 3/4" NPT

Total Ports: 6

• • (5) 3/4" NPT
  • (1) 1/2" NPT

Dimensions

• Length: 13.8 inches
• Width: 2.0 inches
• Height: 2.36 inches

Key Features

Clear Acrylic Construction
Machined from high-quality clear acrylic for durability and rigidity while allowing full visibility of chemical flow.

High Flow Capacity
Large internal passageways support high-volume Softwash systems.

Precision Mixing Performance
Designed for use with metering valves to ensure accurate chemical proportioning and consistent mix ratios.

Visual Monitoring
Transparent body allows operators to instantly confirm chemical draw, flow movement, and mixture consistency.

Chemical Resistant
Compatible with water, sodium hypochlorite (SH), and surfactants used in Softwash applications.

Applications

• Professional Softwash proportioning systems
• Pressure washing rigs requiring controlled chemical blending
• Chemical mixing stations
• Industrial cleaning fluid distribution

Technical Specifications

Benefits

• Improves consistency of Softwash mix ratios

• Simplifies plumbing layout

• Allows real-time visual inspection

• Durable for demanding Softwash environments
