Nozzle Stainless Steel 1/4 npt
SKU: 74-55M$2.30 - $4.10The Nozzle Stainless Steel 1/4 NPT is engineered for excellence, making it the perfect choice for high-impact, high-pressure washing tasks. Crafted from durable stainless steel, this nozzle guarantees longevity and reliability in demanding environments... -
Nozzle Tip Quick Connect Pressure Washer 1/4in Plug
SKU: 74-50M$2.95 - $5.15Pressure Washer Quick Connect Tips 1/4in The purpose of a pressure washer is to provide water at a higher rate of movement. Affixing a nozzle to the wand tip has a similar effect as putting a thumb over part of your garden hose the same flow of water... -
Stainless Steel Nozzle Tips 1/8 in
SKU: 74-56M$2.15 - $3.85Stainless Steel Nozzle Tips 1/8in nptTypically used in the end of the rotating bars for pressure washer surface cleaners as shown on the rightMany Mossmatic surface cleaners use this 1/8 npt fitting sizeThe bars usually have 25 degree tips installed,... -

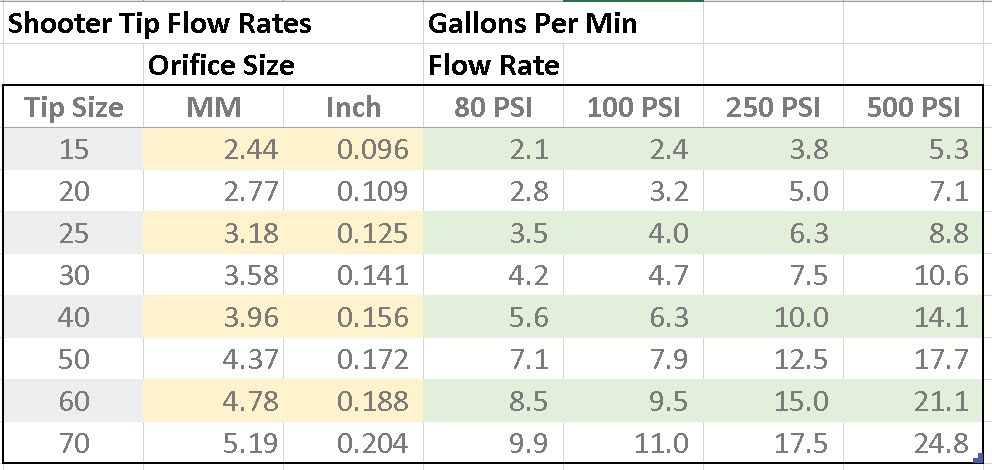

ProTool Nozzle Ladder Saver Shooter Tip to 50ft
SKU: 74-5719$31.20The Ladder Saver Nozzle propels chemicals and liquids 40-50 feet depending on your pressure washer and the water pressure at the job site. There is no need for attachments or special equipment. It is a single, universal, stainless steel, quick... -
Turbo Nozzle Pressure Washer Tip
SKU: 74-57M$18.00 - $24.70Pressure Washer Turbo Nozzle Technical Description: The Pressure Washer Turbo Nozzle is designed for aggressive cleaning applications, delivering a 0° impact with a 25° pattern for efficient and powerful performance. Constructed from high-quality... -
Nozzle Soap Tips Brass 1/4in Tips for Softwashing
SKU: 74-5CM$3.05Brass Tips for Flowing Soap mixes. Typically while Downstreaming from your Pressure Washer Installed into a dual lance wand Dual Lance Wand is used to "dump" pressure out to the soap tip. In a Downstreaming setup this will lower the pressure in the... -
ProTool 4 Tip Nozzle Holder (no tips)
SKU: 74-5990$12.754 Tip Nozzle Holder (no tips) Pressure washer tip holder with aluminum clip is made of durable steel. Easily clip onto pressure washer or other pressure washer accessories. You can access nozzles at any time, prevent them from being lost.Replace... -
Twist Adjust Softwash nozzle 3-7gpm -
SKU: 74-57182$78.3512 GPM Adjustable NozzleGet rid of countless spray tips and remembering color coded systems! The X-Jet M5DS Twist is an easily adjustable nozzle that gives you multiple angles - get every spray pattern between 0° and 60° with a simple adjustment! It... -
Adjustable Nozzle Holder
SKU: 74-5720$89.95Adjustable Nozzle Holder PSI: 5,700 / GPM: 10Perfect for cleaning hard to reach areas like inside containers or guttersNozzle position locks w...Change the pressure of your spray with a turn of the grip. Works as a "Hi-Lo" nozzle for downstream soap... -
Pressure Washing Soap Tip Nozzle
SKU: 74-51M$2.70 - $7.05Transform your pressure washing experience with our Nozzle Pressure Washer Soap Tip, designed to enhance the cleaning power of your pressure washer. This professional-grade soap tip ensures a superior application of soap, allowing you to tackle tough... -
ProTool 5 in 1 Nozzle 4gpm 3400psi, 140deg
SKU: 74-5730$25.705 in 1 Nozzle 4gpm 3400psi, 140deg Combines five different spray patterns into one convenient twistable nozzle headDesigned to fit most gas pressure washersOur Quick Connect 5-N-1 Spray Nozzle for cold water pressure washers includes 5 nozzles in 1... -
Rotating Nozzle 2.9 to 4.0 gpm 3500psi
SKU: 74-5704$83.003500 PSI Rotomax Rotating Nozzles General Pump Best Seller! The Rotomax Rotating Nozzle is designed to improve the cleaning efficiency of any pressure washer by producing a rotating action that considerably expands the contact area of the cleaning...
The orifice size of the nozzle determines the operating pressure of your machine. A
The smaller the orifice, the greater the restriction of water flowing through the machine. This causes the pressure to increase.
Use a Larger orifice nozzle and you will will reduce operating pressure.
Choosing a nozzle with too small of an orifice will limit water flow and possibly create an excessive use of the unloader on the Pressure Washer.

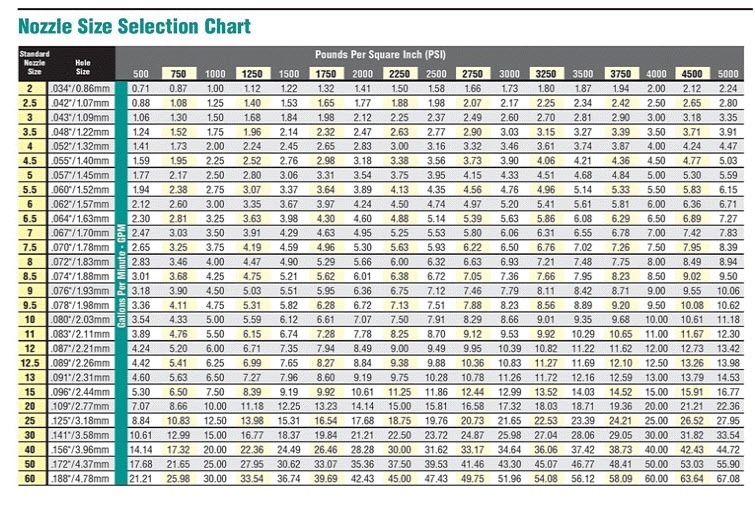

Use the table below to select the properly sized nozzle for your machine. Determine the nozzle size by matching the operating pressure (PSI) of your machine to the gallons per minute (GPM).
Spray Angle vs. Spray Width
Angle | % Impact / Sq.In. | 2in | 4in | 6in | 8in | 10in | 12in | 15in | 18in | 24in | 30in | 36in
-----------------------------------------------------------------------------------------------------------------
15° | 30% | 0.5in | 1.1in | 1.6in | 2.1in | 2.6in | 3.2in | 3.9in | 4.7in | 6.3in | 7.9in | 9.5in
25° | 18% | 0.9in | 1.8in | 2.7in | 3.5in | 4.4in | 5.3in | 6.6in | 8.0in |10.6in |13.3in |15.9in
40° | 12% | 1.5in | 2.9in | 4.4in | 5.8in | 7.3in | 8.7in |10.9in |13.1in |17.5in |21.8in |26.2in
50° | 10% | 1.9in | 3.7in | 5.6in | 7.5in | 9.3in |11.2in |14.0in |16.8in |22.4in |28.0in |33.6in
65° | 7% | 2.5in | 5.1in | 7.6in |10.2in |12.7in |15.3in |19.2in |22.9in |30.5in |3
Surface Cleaner Nozzle Recommendation
(Pump Capacity vs. Number of Nozzles / Pressure in PSI)
4 GPM
Nozzle Size | 2 nozzles | 3 nozzles | 4 nozzles | 5 nozzles
-----------------------------------------------------------
2.0 | 4000 psi | 1800 psi | 1000 psi | 700 psi
2.5 | 2200 psi | 1000 psi | 600 psi | -
3.0 | 1900 psi | 750 psi | - | -
4.0 | 1000 psi | - | - | -
5 GPM
Nozzle Size | 2 nozzles | 3 nozzles | 4 nozzles | 5 nozzles
-----------------------------------------------------------
2.0 | - | 2800 psi | 1600 psi | 1000 psi
2.5 | 4000 psi | 1600 psi | 900 psi | 600 psi
3.0 | 2700 psi | 1300 psi | 600 psi | -
4.0 | 1500 psi | 650 psi | - | -
5.0 | 1000 psi | - | - | -
6 GPM
Nozzle Size | 2 nozzles | 3 nozzles | 4 nozzles | 5 nozzles
-----------------------------------------------------------
2.0 | - | 4400 psi | 2250 psi | 1600 psi
2.5 | - | 2200 psi | 1300 psi | 900 psi
3.0 | 4000 psi | 1900 psi | 1000 psi | 650 psi
4.0 | 2400 psi | 1000 psi | 550 psi | -
5.0 | 1400 psi | 650 psi | - | -
6.0 | 1000 psi | 450 psi | - | -
8 GPM
Nozzle Size | 2 nozzles | 3 nozzles | 4 nozzles | 5 nozzles
-----------------------------------------------------------
2.0 | - | - | 4000 psi | 2500 psi
2.5 | - | - | 2200 psi | 1500 psi
3.0 | - | 3200 psi | 1900 psi | 1100 psi
4.0 | 4000 psi | 1800 psi | 1000 psi | 600 psi
5.0 | 2500 psi | 1100 psi | 650 psi | -
6.0 | 1800 psi | 800 psi | - | -
7.0 | 1300 psi | - | - | -
10 GPM
Nozzle Size | 2 nozzles | 3 nozzles | 4 nozzles | 5 nozzles
-----------------------------------------------------------
2.0 | - | - | - | 4000 psi
2.5 | - | - | 4000 psi | 2200 psi
3.0 | - | - | 2750 psi | 1800 psi
4.0 | - | 2800 psi | 1500 psi | 1000 psi
5.0 | 4000 psi | 1700 psi | 1000 psi | 650 psi
6.0 | 2700 psi | 1300 psi | 700 psi | -
7.0 | 2000 psi | 900 psi | 500 psi | -
8.0 | 1500 psi | 650 psi | - | -
9.0 | 1200 psi | - | - | -
