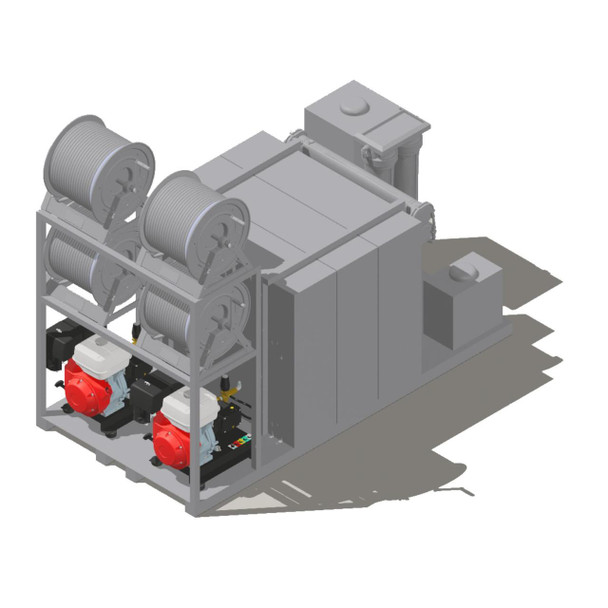

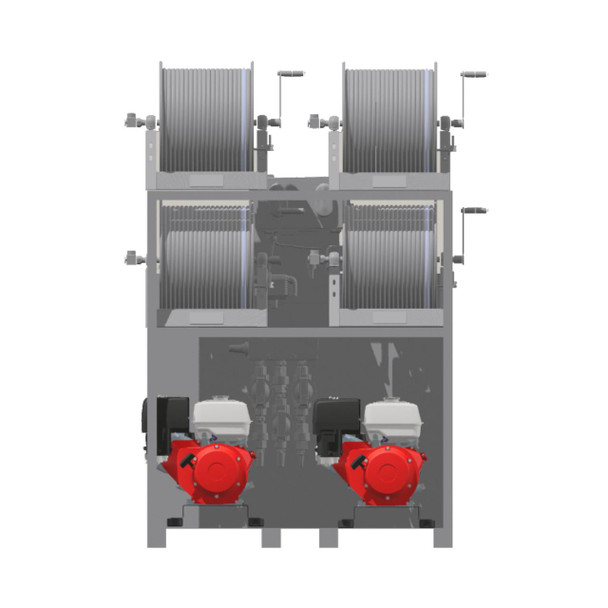

ProTool Drone Skid – High-Output Drone Delivery System for Soap & Pure Water

** This system is in production and real pictures will be updated when built **

Click here for an interactive tour!

The ProTool Drone Skid is the industry’s most advanced drone-powered cleaning skid, engineered for high-volume soap application and pure-water rinsing using a large commercial cleaning drone. Designed for serious exterior cleaning professionals, this top-of-the-line skid combines a belt-drive pressure washer, a P40 soft wash pump, and a high-output ProTool HydroPanel 4.5 RODI system—delivering unmatched capability, efficiency, and control from the ground to the sky.

At the heart of the system is the HydroPanel 4.5, ProTool’s highest-output RODI unit, capable of producing purified water at extremely high rates and filling your holding tanks faster than any standard system. The HydroPanel doesn’t just increase production—it massively lowers the cost of pure-water cleaning. DI-only setups can burn through 2–4 DI tanks every week, often costing contractors $500–$1,000 weekly in resin exchanges. By running RO water through the DI stage first, the HydroPanel reduces DI usage to almost nothing—typically one DI tank every three months. That brings operating costs down to roughly $20 a week, saving thousands of dollars every month for high-volume cleaning operations. The more you clean, the more the HydroPanel pays for itself and your skid.

For chemical application, the integrated ProTool P40 soft wash pump delivers smooth, controlled flow directly to the drone for applying detergents or cleaning solutions across large building surfaces, metal panels, or windows. The P40 provides the pressure and volume needed for uniform soap coverage—even at high elevations or long horizontal distances.

For rinsing, the system’s belt-drive pressure washer (available in 4 GPM, 5.5 GPM, or 8 GPM) powers the drone’s rinse mode using pure RODI water from the triple-tank setup. Combined with high flow and pure water, this delivers spotless, streak-free results on glass, solar arrays, and building exteriors without the need for lifts or ladders.

The Drone Skid is built around a large-format chassis with three 100-gallon water tanks, a 50-gallon and 7-gallon chemical tank, and an external large DI tank for extended DI life and continuous runtime. Whether you’re performing window cleaning, building washing, solar panel cleaning, or high-reach exterior maintenance, this system provides constant flow, massive capacity, and all-day production capability.

A fully integrated remote control system lets operators control every major function—including rinse, soap on/off, engine start/stop, and visual status indicators—directly from the ground or flight area. This gives drone pilots total command of soap and pure-water delivery without returning to the skid, improving efficiency and reducing labor.

A fully integrated remote control system provides complete command over the skid, including:

• Remote rinse

• Remote soap on/off

• Engine start/stop

• System status and indicator lights

This means the operator can launch, fly, apply soap, rinse, and control the entire delivery system without returning to the skid—saving time, fuel, and manpower.

The ProTool Drone Skid is engineered for large-scale drone cleaning operations where reach, performance, and reliability matter most. If your business demands the highest level of output, control, and efficiency, this system sets the standard for drone-delivered cleaning.

Top of the line. High power. Engineered for professional drone-based exterior cleaning.

Key Features

• Four stainless-steel rear facing hose reels

• Supports pressure wash, soft wash, and pure water operation

• ProTool HydroPanel 4.5 RODI system – 4.5+ GPM continuous pure water

• Reduces DI resin cost by over 90%

• Electric Start Honda GX690 8gpm 3500 PSI Belt/Gear Driven Pressure Washer

• Electric Start Honda GX200 P40 300 PSI pump for chemical / soap spraying

• 100 gal raw water, 200 gallon pure water slimline water tank with 50 gal SH or chemical and 7 gal soap tanks

• Skid Nexus Pro S - Remote System
  • Remote start / stop for both engines
  • Remote pure / dirty (Raw) water
  • Remote Rinse (Bleach on/off)
  • Remote Soap On/Off
• Remote Water Fed Delivery Line with flow Control
• Water Fed Pole Delivery Line and Electric Hose Reel
  • Great for where the drone might not be able to fly (trees or obstacles in the way)
• All System Independently Operate

• Stainless fittings, manifolds, and corrosion-resistant plumbing

• 96" × 48" format ideal for large commercial vans

• Built in the USA by ProTool / J. Racenstein
