ProTool Housing SS 40in 1/2in in 1/2 out 300psi

RO Membrane Housing SS 40in 1/2in in 1/2 out 300psi ProTool

Stainless Steel RO (Reverse Osmosis) Membrane housing is manufactured from Stainless Steel and is rated to 300psi.

• Housing: 304 Stainless Steel
• End Caps: ABS Plastic
• Rated Pressure: 300psi
• Inlet Port 1/2in
• Outlet Port: 1/2in
• Mounting: Stainless Band and Mounting Block

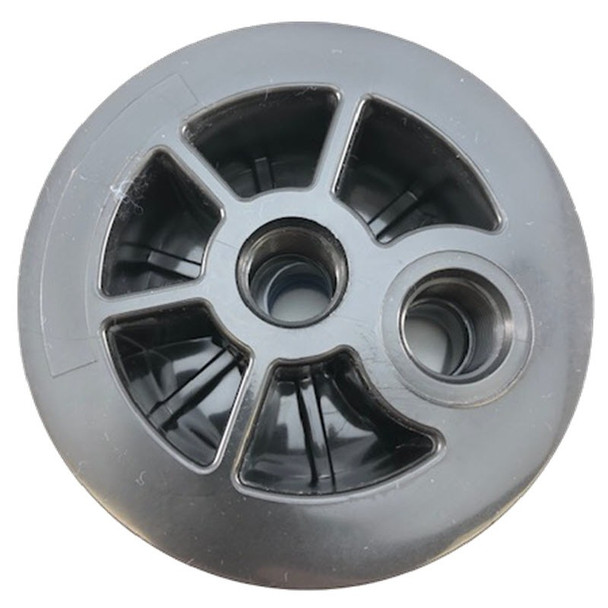

The Center Port on the End Cap is used for Permeate, filtered water out, ether end can be use, plug the opposite side.

The Port Offset from Center is used for source water inlet and brine water outlet. Orient the RO Membrane Flow Arrow in the same orientation as this inlet and outlet water attachment
