ProTool HydroPanel RODI Wall Mount

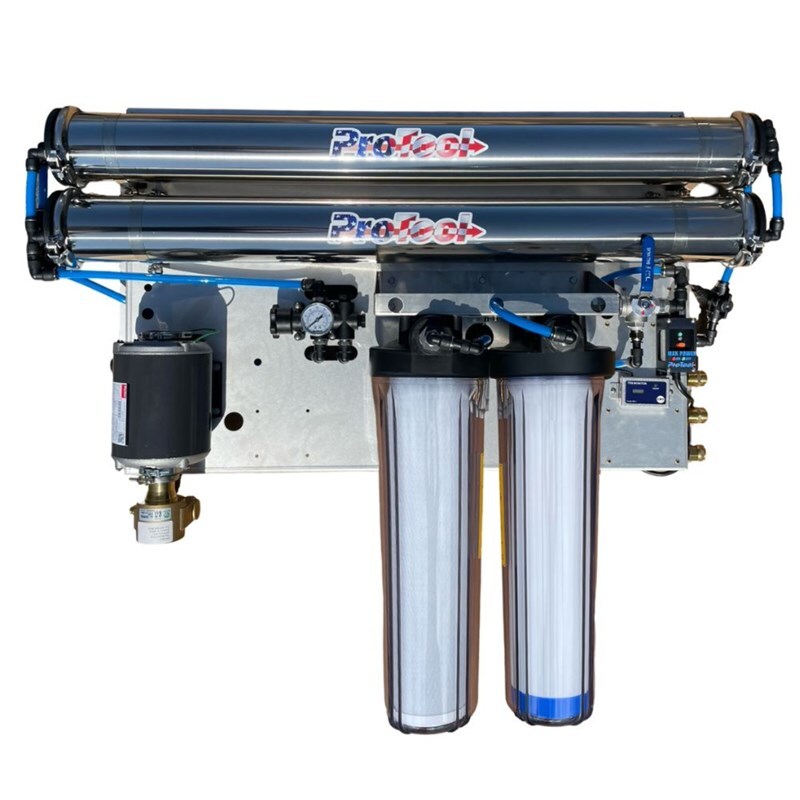

ProTool HydroPanel — All-in-One Wall-Mounted RO/DI Pure Water System

The ProTool HydroPanel is your turnkey solution for premium pure water on demand. Designed for easy wall-mount installation, this all-in-one RO/DI system comes fully assembled with all filters, housings, plumbing, electrical wiring, and controls pre-installed on a single rugged panel — ready to go straight out of the box.

Pure Water. Pure Performance. Pure Simplicity.

The ProTool HydroPanel Series delivers professional-grade water purification without the hassle of piecing together parts. It’s the fastest, cleanest, most scalable way to get RO/DI water on-site and on demand.

Whether you're just growing your business or running full-scale crews, there's a HydroPanel built for you.

Key Features (All Models)

• Fully Assembled & Wall-Mounted:
  All plumbing, wiring, and components mounted on a single service-friendly panel — install and go.

• Booster Pump Options:
  • 2.0 – 12V pump with external regulator
  • 3.0 – 110V high-output rotary pump
  • 4.5 – Oversized rotary pump with auto flush for high-demand use

• Dual 40" RO Membranes:
  Extended-life, high-capacity membranes on every model for superior water quality and long service intervals.

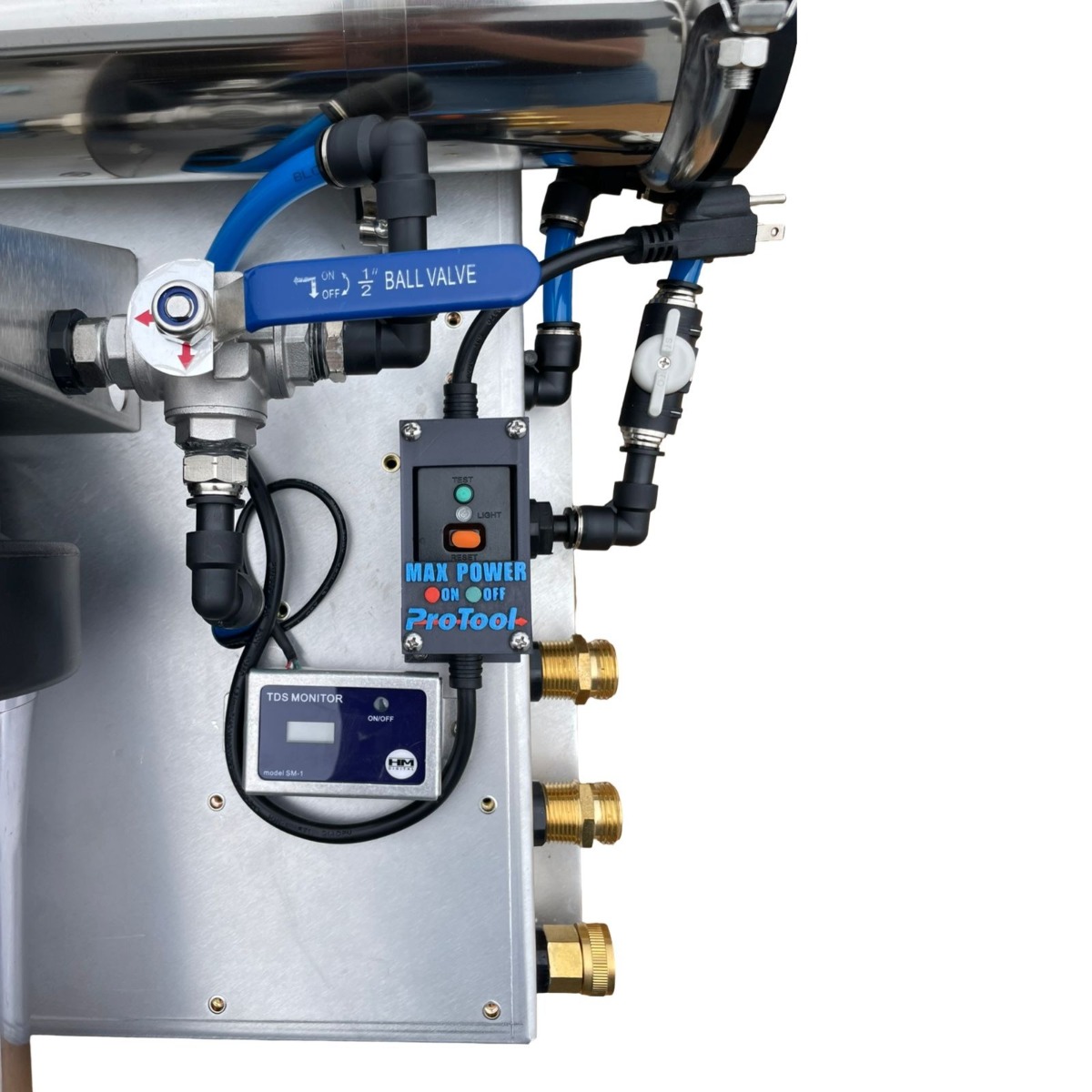

• TDS Meter:
  Built-in total dissolved solids meter for instant water quality monitoring.

• Pressure Gauge:
  Easily track pressure at a glance to maintain system performance.

• RO Flush Valve (Manual + Auto on 4.5):
  Maintain peak performance and membrane life with flushing capability.

• 12V Bus Bars + Circuit Breaker:
  Clean, safe electrical setup for battery integration or plug-and-play operation.

• 110V Power Pack:
  Converts standard AC power to 12V where needed, depending on model. (2.0 only)

• Input/Output Manifold:
  Simplifies installation and plumbing for consistent, leak-free operation.

• 10" or 20" Pre-Filters:
  All models available with either size to match your filter capacity needs.

Choose Your HydroPanel:

Available Models

HydroPanel 2.0 – The Workhorse Upgrade

Step up from water-powered systems with the compact and capable HydroPanel 2.0. Powered by a 12V RO booster pump with external regulator, it delivers reliable pressure to run 1–2 poles up to 50–60 feet. Ideal for solo operators or growing teams, this model strikes the perfect balance between power, portability, and performance.

HydroPanel 3.0 – The Flagship Powerhouse

Built for the biggest crews and boldest projects, the HydroPanel 3.0 is your go-to system when you need unstoppable performance. Featuring a high-output 110V rotary pump and flowing 3.0 GPM+, it powers multiple poles with ease. From commercial campuses to multi-story buildings, this fully loaded panel is the definition of plug-and-play power. No building too tall. No crew too big.

HydroPanel 4.5 – The Tank-Filling Beast

Designed for rapid RO holding tank fills and high-volume water delivery, the HydroPanel 4.5 takes everything from the 3.0 and kicks it up a notch. It features a larger rotary pump, high-flow RO membranes, and an auto flush system to keep your membranes clean and flowing. Perfect for drone delivery skids, high-output RO systems, or operations that demand quick fills without compromise.
