ProTool Pump Plates Ready to Use

$1,096.70

Description

Maximize Your Cleaning Efficiency with the

ProTool Dual Pump Plate System

Introducing the ProTool Dual Pump Plate System, your ultimate solution for high-performance spraying and large surface cleaning tasks. Engineered for power and reliability, this system combines two robust 12V pumps to deliver unmatched flow rates and consistent performance, making it ideal for demanding cleaning applications.

** ALL units come assembled, wired and ready to go out of the box. Just route your plumbing to your tanks/devices! **

Product Description

Powerful Dual Pumps: Equipped with two 12V pumps, each delivering a 5.3 GPM open flow rate, the ProTool Dual Pump Plate System provides a total flow rate of up to 10 GPM. This ensures robust performance even if one pump encounters an issue, guaranteeing over 5.3 GPM through 200 feet of 1/2" hose for extensive coverage.

Key Features

Consistent Flow: The innovative bypass-style design maintains a steady water flow at a maximum pressure of 90 PSI, ensuring efficient and effective cleaning for large surfaces and tough tasks.

Durable Motor: Each pump is powered by a 12V permanent magnet motor known for its efficiency and durability. This design ensures consistent performance and extends the lifespan of the system, even under heavy use.

Thermal Protection: Equipped with thermal protection, the system prevents overheating, allowing for safe and continuous operation in various environments and conditions.

Dry Run Capability: The pumps are designed to operate reliably even when running without fluid, offering flexibility for different applications and reducing the risk of damage.

Product Configurations:

RO Boost - Single 5.3 gpm 90PSI regulated pump for boosting one or two RO membranes

Delivery - Single 5.3 gpm 90PSI regulated pump with pump controller for delivering water from a tank

Dual Delivery - Two 5.3 gpm 90PSI regulated pumps with 2 pump controller for dual delivery lines from a tank. Perfect for two operators with dedicated controllers or 4 operators off the two lines

RO Boost and Delivery - Two Single 5.3 gpm 90PSI regulated pumps with one pump controller. This is to boost RO membranes into a tank, and delivery RO/DI water from the tank.

Power options:

12V power is for use with a 12V battery.

12V and 110V power is for use with either a 12V battery, or included 110V - 12V power supplies. This option allows you to run the pumps indefinitely off a standard 110V wall socket or generator.

110V power supplies will be mounted to the back of the plate and pre-wired.

Controller and Accessories

Using a Pump controller to manage the two pumps benefits the operator when they want

1) To be able to use water flows at specific flow rates.

2) Want to extend the life of the battery.

3) Extend the life of the pumps

A pump controller will use less power from the battery, and extend the time a battery can run the pumps in the field.

Spring V16HC Controller: This advanced controller manages pump operation to enhance performance and longevity. It regulates pump speed, reduces mechanical wear, and improves energy efficiency by precisely controlling pump flow. The easy setup ensures hassle-free operation, and the controller extends pump life while reducing power consumption.

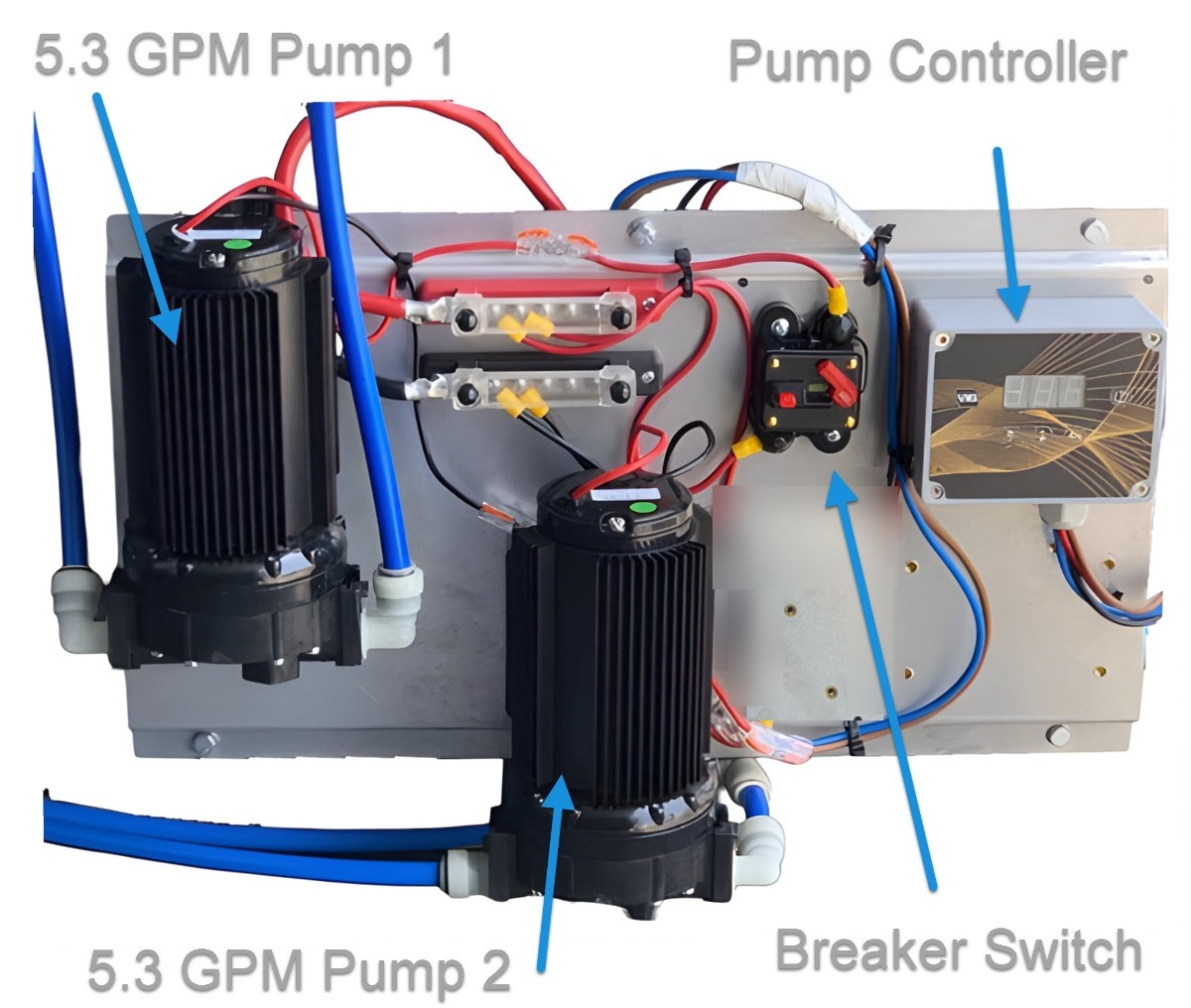

Comprehensive Components:

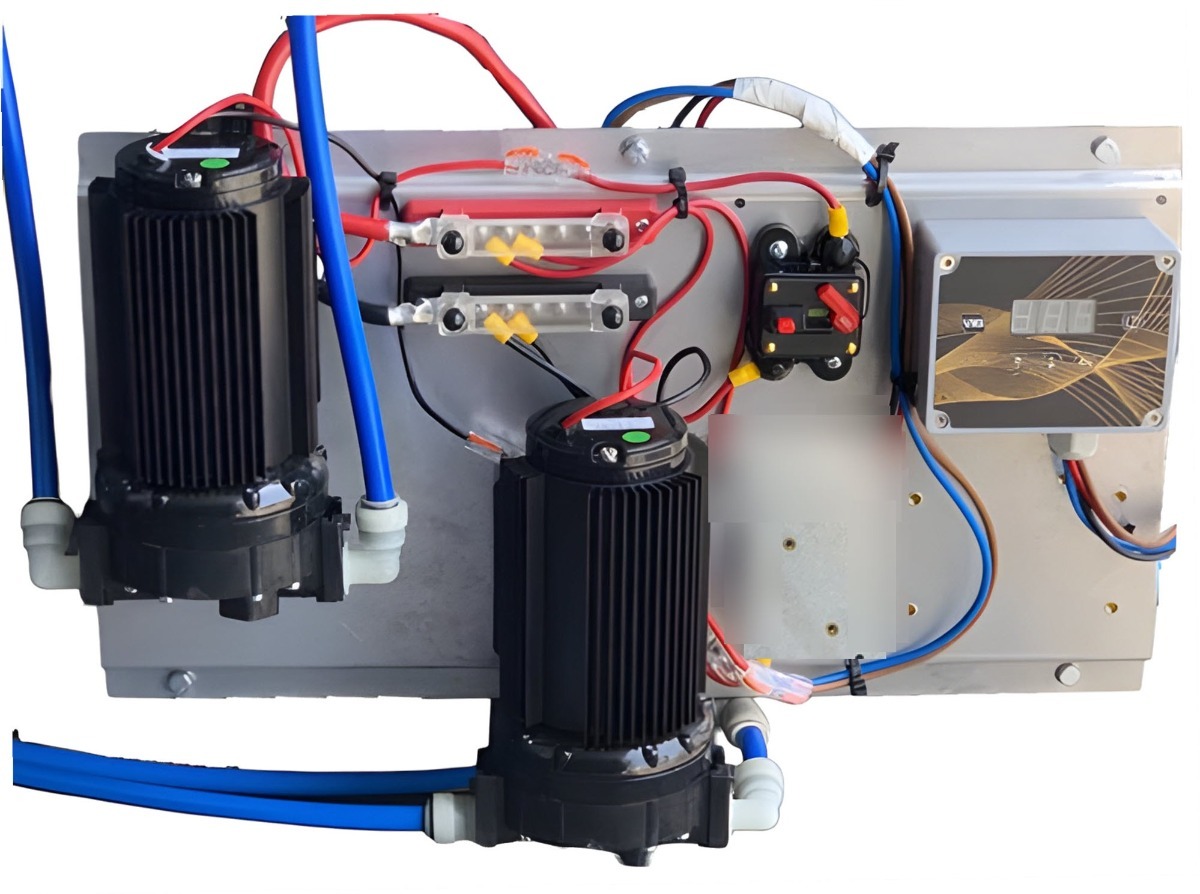

Pump Mounting Plate: Provides a secure and organized setup for the dual pumps, ensuring stability during operation.

4 Gauge Battery Cables: Includes 5ft red and 5ft black cables with lugs for straightforward attachment to marine-style terminals.

5.3 GPM Bypass Pumps (2 qty): Core components offering reliable pumping capability.

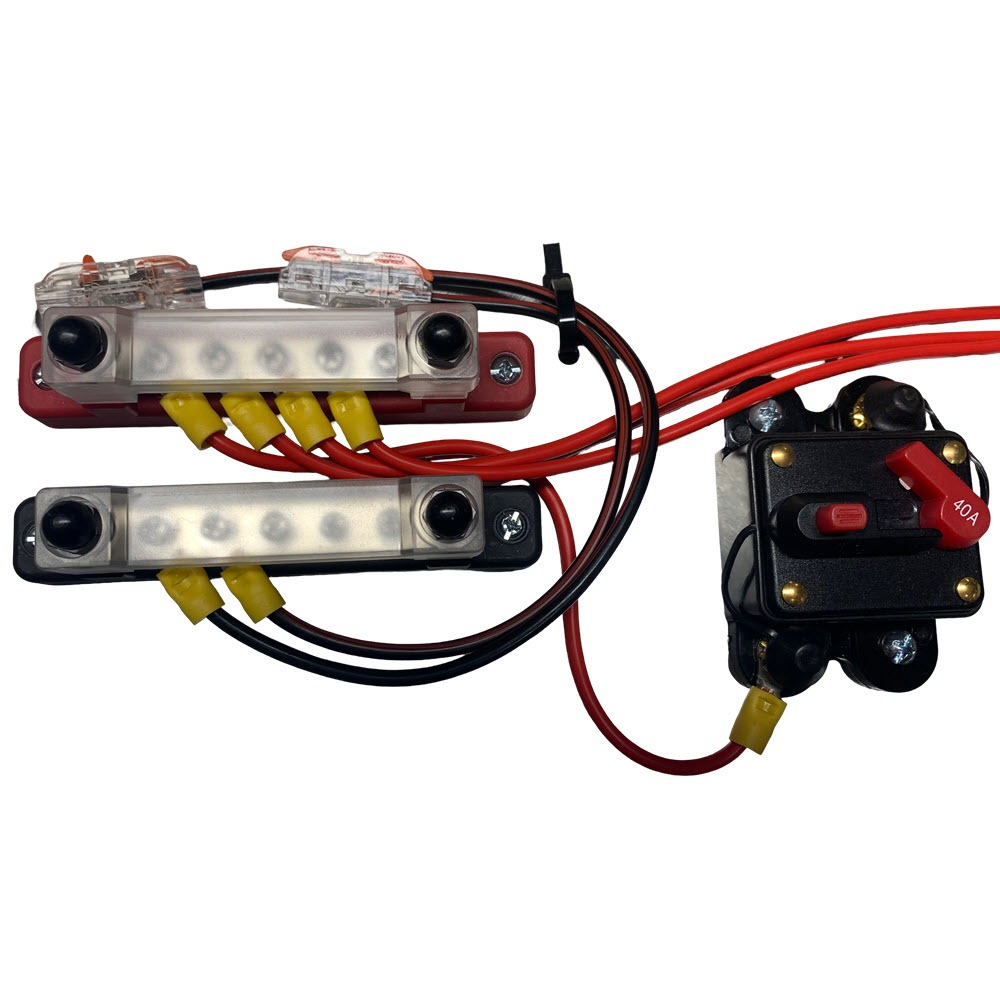

40 Amp Breaker Switch: Ensures safety by preventing electrical overloads.

TDS Meter: Inline style with bracket, T-fitting, and probe for monitoring water quality and ensuring optimal performance.

Specifications:

Plate Dimensions: Width 21 in., Height 12 in.

Current Draw: Maximum 360 Watts DC 12V (30 amps)

Max Water Temperature: 104°F (40°C)

Usage Instructions:

Connect the pump system to your desired water supply.

Position the unit and ensure all connections are secure.

Open the water valve, turn on the breaker switch, and then activate the Pump Controller to start pump operation.

Begin your cleaning or spraying task.

Turn off the system after use.

Additional Recommendations:

The ProTool Dual Pump Plate System is designed for reliability and efficiency, making it the perfect choice for professionals and enthusiasts alike. Ideal for large-scale cleaning and spraying tasks, this system ensures consistent performance, easy operation, and enhanced durability. Upgrade your setup today with the ProTool Dual Pump Plate System and experience the difference in your cleaning efficiency and effectiveness.

For more information or to purchase, visit our website or contact us directly.
