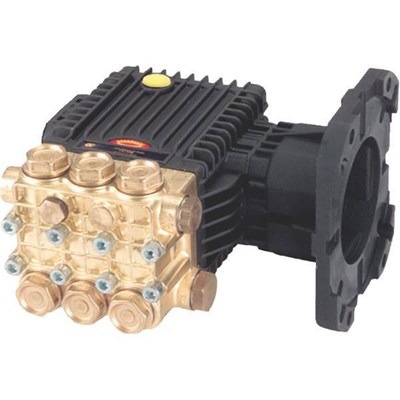

Pump, Triplex, 3.5GPM 4000PSI 3400 RPM,

Pump, Triplex, 3.5GPM 4000PSI 3400 RPM

FEATURES:

• Innovative one piece plunger design for long service life
• offers a 5% reduction in crankcase load compared to standard 3000 psi 15mm pumps
• Plunger performance is improved against thermal shock and cavitation due to new, unique bonding process
• Standard SAE J609 gasoline mounting flange for up to 16hp engines
• Forged brass manifold with a 3:1 hydrostatic rating
• Die-cast, anodized aluminum, oil bath crankcase
• Premium roller bearings
• Stainless steel inlet and discharge valves

SPECIFICATIONS:

• Max Volume: 3.5 GPM
• Max Discharge Pressure: 4000 PSI
• Max Pump Speed: 3400 RPM
• Bore:    13mm
• Stroke: 11mm
• Oil Capacity: 14 oz
• Max Fluid Temperature: 165 F
• Inlet Port Thread: 1/2" FPT
• Discharge Port Thread: 3/8" FPT
• Hollow Shaft I.D: 1"
• Weight: 20 lbs.
• Dimensions: 8.8"x9.7"x6.5"
