Reel 200/300ft 3000psi Manual Cox

Hose Reel for Water or Spraying  Hose to 3000psi
Used for inlet and outlet hose on Water-Fed Pole and Pressure Washer

• Offers One Piece All Welded Steel “A” Frame Construction
• Low Profile Riser & Open Drum Slot For Smooth, Even Hose Wraps
• Solid Steel Crank With Smooth Round Handle
• Permanently Lubricated Pillow Block Bearings For Smooth Rotation
• Long-Handled Lock Pin Secures Reel From Rotation
• Adjustable Tension Brake prevents freewheeling
• Max Pressure 3000 PSI

Dimensions:

19 inches high
15.5 inches deep
17.5 inches wide at the frame
23 inches wide from water connector to crank handle tip

Capacity:

• 1/2” id Hose (7/8” OD) 200 ft
• 3/8” id Hose ( 3/4” OD) 300 ft
• 1/4" id Hose (1/2" OD) 500 ft

For Garden Hose attachment this hose reel will need the following brass parts (Not Included):

In the inside of the tube, where the hose coils up needs

• One [150-1242] 3/4 Garden hose fitting to 1/2 pipe.

On the outside of the reel, it needs:

• one [150-122] 3/4 Garden hose fitting to 1/2 female pipe and
• one [150-137] 1/2 Nipple.

Offers Professional grade heavy duty steel construction.

• Rolled edges & ribbed discs provide strength & safety.
• Industry Leading 2-year manufacturer's limited warranty.
• Made in the U.S.A. - Sold & Supported Worldwide.

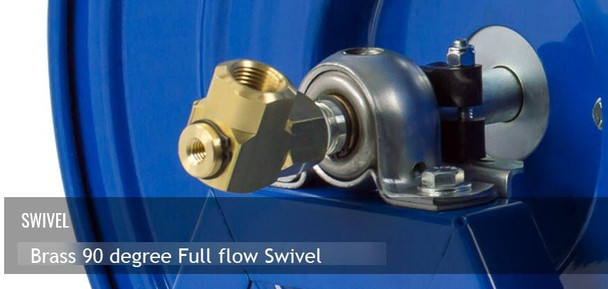

• SWIVEL - Brass 90º full-flow NPT swivel inlet.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.

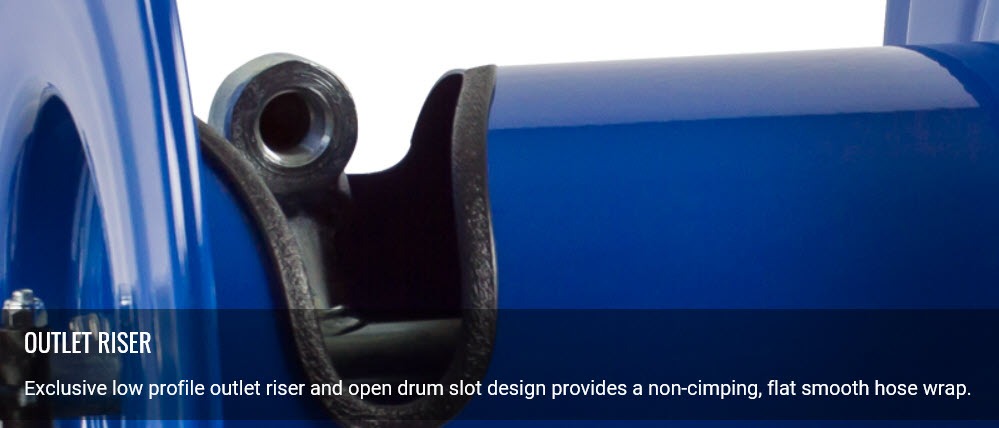

• OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
• "A" FRAME - Sturdy one piece, all CNC robotically welded 12 gauge steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
• PILLOW BLOCK BEARINGS- Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.

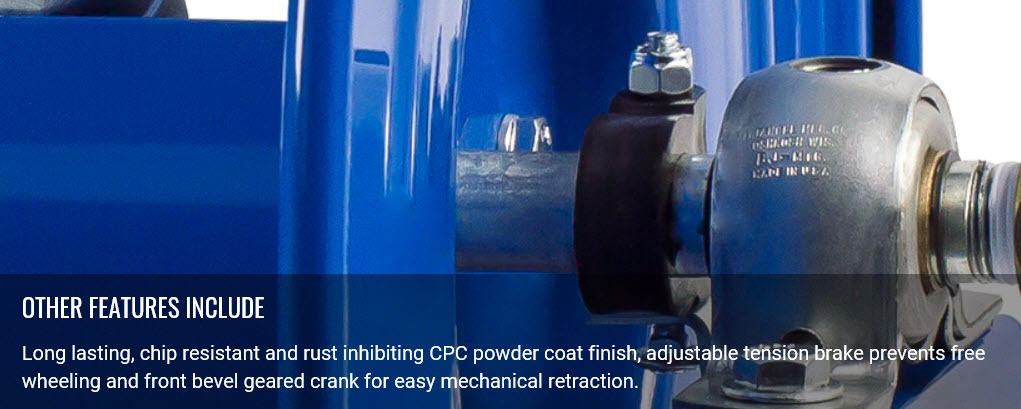

• Signature Powder Coating a long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and front bevel geared crank for easy mechanical retraction.

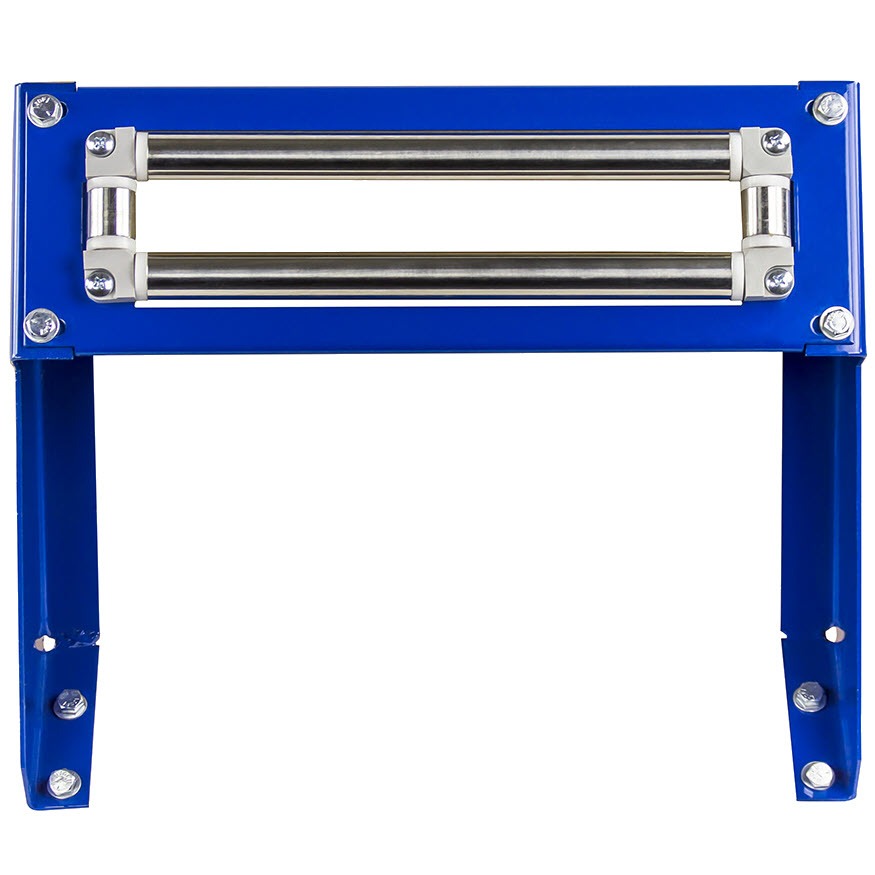

Accessory Roller Bracket Hose Guide.

Bracket not included with Reel

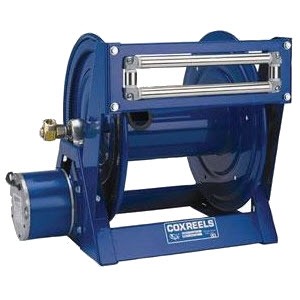

Roller Bracket installed on Electric Reel

Bracket not included with Reel

Reel holds 200ft 1/2in 300ft or 3/8in and 500ft of 1/4in hose
