Digital Time Relay Timer Control Switch with LED Display – TS4586

This digital display time control relay module is a versatile and precise timing solution, perfect for managing electrical circuits with accuracy. Built with VO-grade flame-retardant ABS material, it ensures durability and safety. DC12V systems, this relay is easy to use, features an intuitive LED display, and provides a wide timing range for various applications.

Key Features:

• Power Source: DC12V
• Timing Range: 0~999 seconds/minutes/hours
• Timing Accuracy: 1 second
• Longest Time: 999 hours
• Minimum Time: 1 second
• Material: VO-grade flame-retardant ABS housing for enhanced safety
• Compact Design: Product size 86.3×45.5×45mm with installation hole size 76.8×42.3mm

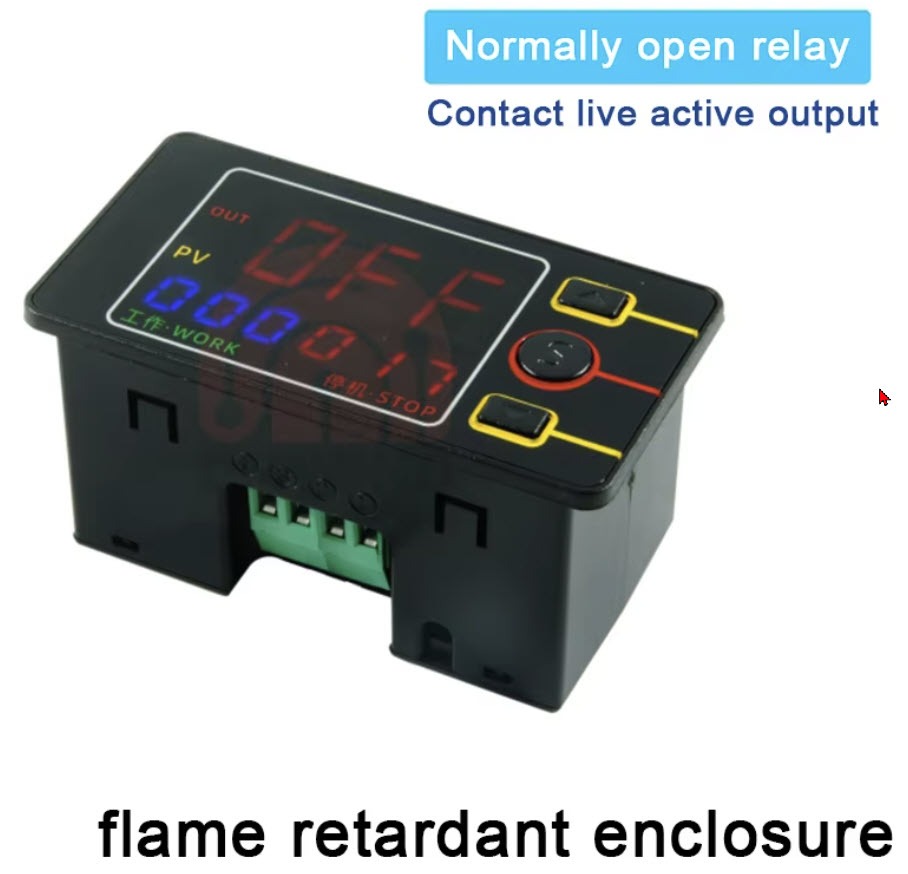

• Control Type: 1-way normally open relay with automatic trigger on power-on
• Power Off Storage: Retains settings during power outages
• Timing Error: Minimal timing error of 20ppn with independent clock crystal
• Application: Ideal for low-power loads with sealed protection

Additional Features:

• Active output with a range of voltage specifications
• Clear and easy-to-use design, complete with a user manual
• Durable and reliable for industrial and domestic applications

Package Includes:

• 1 × TS4586 Digital Display Time Control Relay Module

This timer control switch combines functionality and safety, making it an excellent choice for precise timing operations in a variety of systems.
