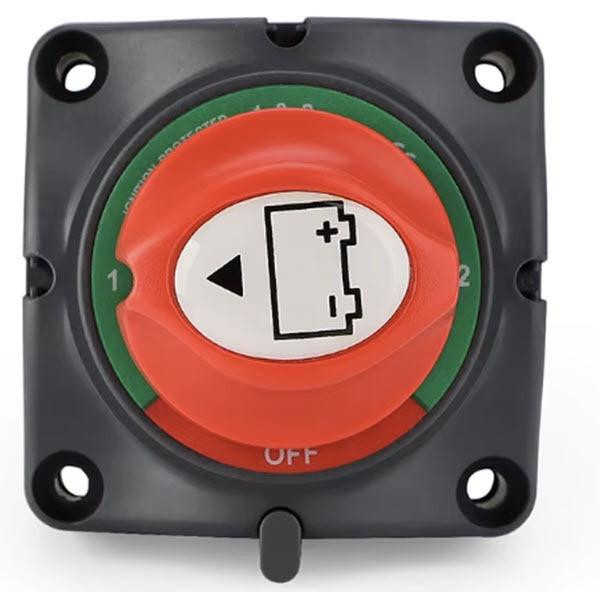

Switch A-B Power Select

Switch Off, A, B or Both AB Power Select Switch

4-Position Rotary Switch for 12V/24V Systems, 200A Battery Power Cut-Off Switch for Skids, Vehicles, RVs, Boats, and Marine Use

Key Features:

• Versatile 4-Position Operation : Features "Off," "Select A," "Select B," and "Select Both (A+B)" positions for flexible battery management across two power sources.
• Durable and Reliable Construction : Built with heavy-duty brass terminals and robust plastic housing for long-lasting performance. The switch includes a removable rear cover for terminal insulation and side plates to accommodate heavy-duty battery cables.
• High Current Capacity : Handles up to 200A continuous current at 12V, 100A at 24V, and a maximum current of 1250A, making it suitable for demanding applications.
• Wide Compatibility : Designed for 12V and 24V DC systems, perfect for skids, vehicles, RVs, boats, and marine equipment.

Product Specifications:

• Voltage : 12V-24V DC
• Continuous Current : 200A (12V), 100A (24V)
• Max Current : 1250 Amps DC
• Stud Size : 2x 3/8'' (M10 10mm)
• Bolt and Nut Size : M8 (8mm)
