Drone Building Cleaning: Efficient and Effective

Jay Racenstein
January 1st, 2020 4 minute read

Listen to article

Audio generated by DropInBlog's Blog Voice AI™ may have slight pronunciation nuances. Learn more

Drone Building Cleaning: Efficient and Effective

Overview:

Drone building cleaning offers a modern, efficient solution to maintain high-rise and complex structures. Utilizing drones capable of spraying 8 gallons per minute (GPM) with pure water ensures a thorough cleaning process, reducing chemical use and providing sparkling, streak-free finishes.

System Components:

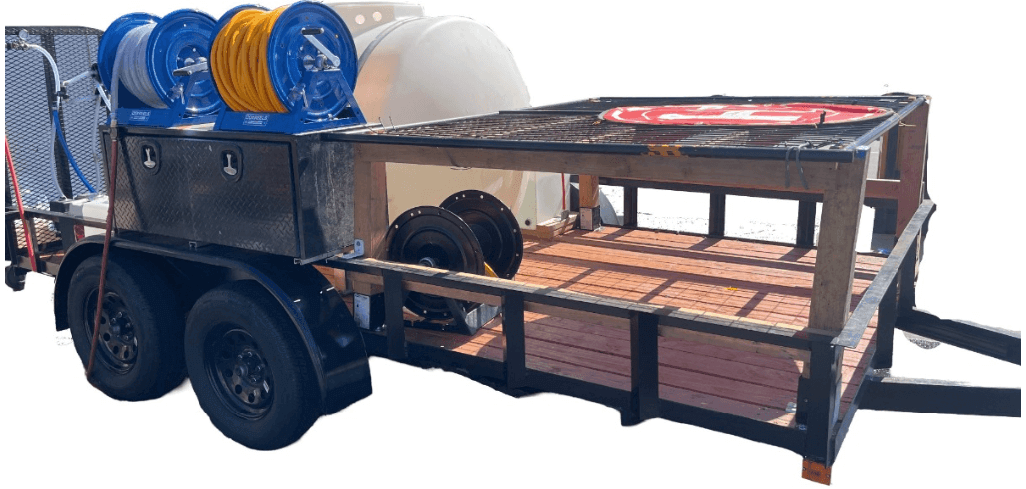

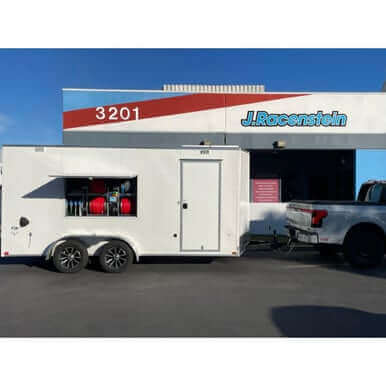

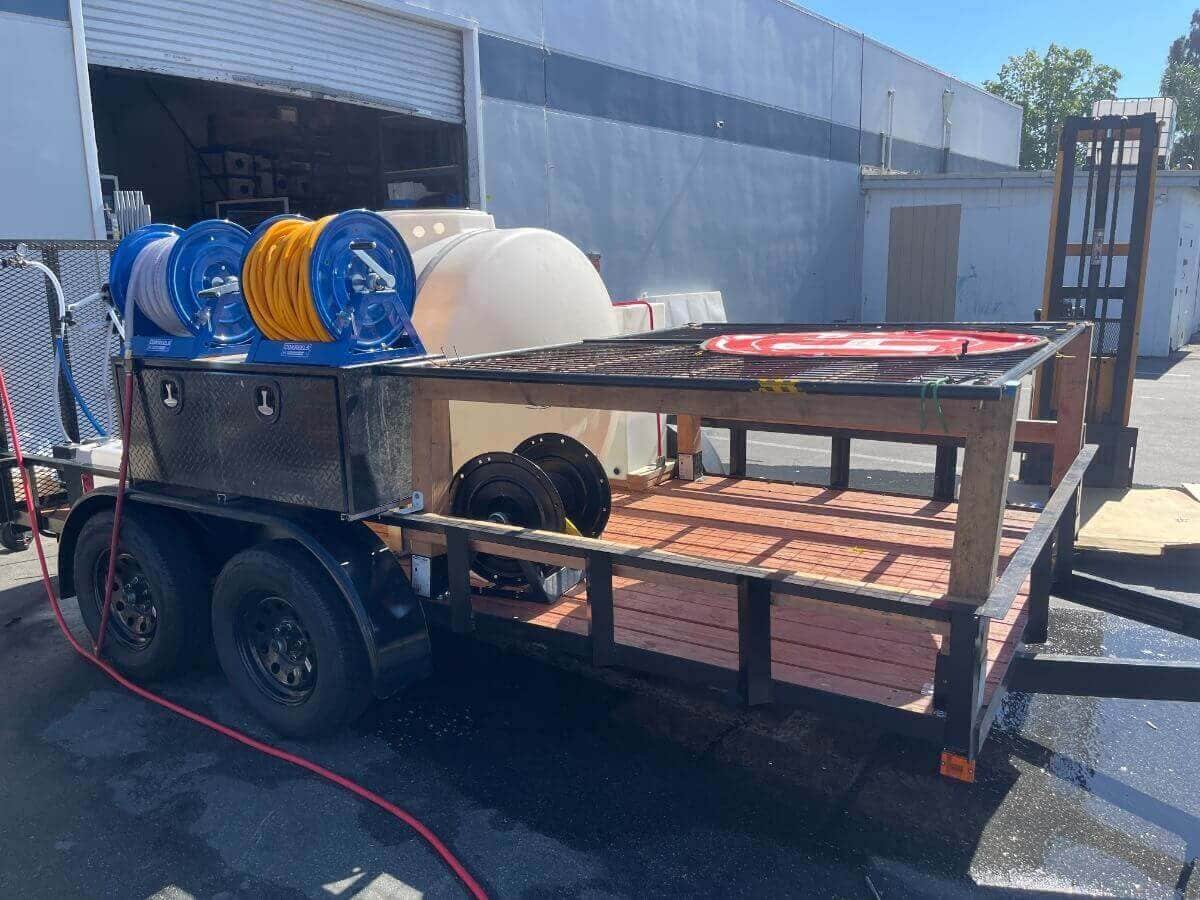

Drone Trailer:

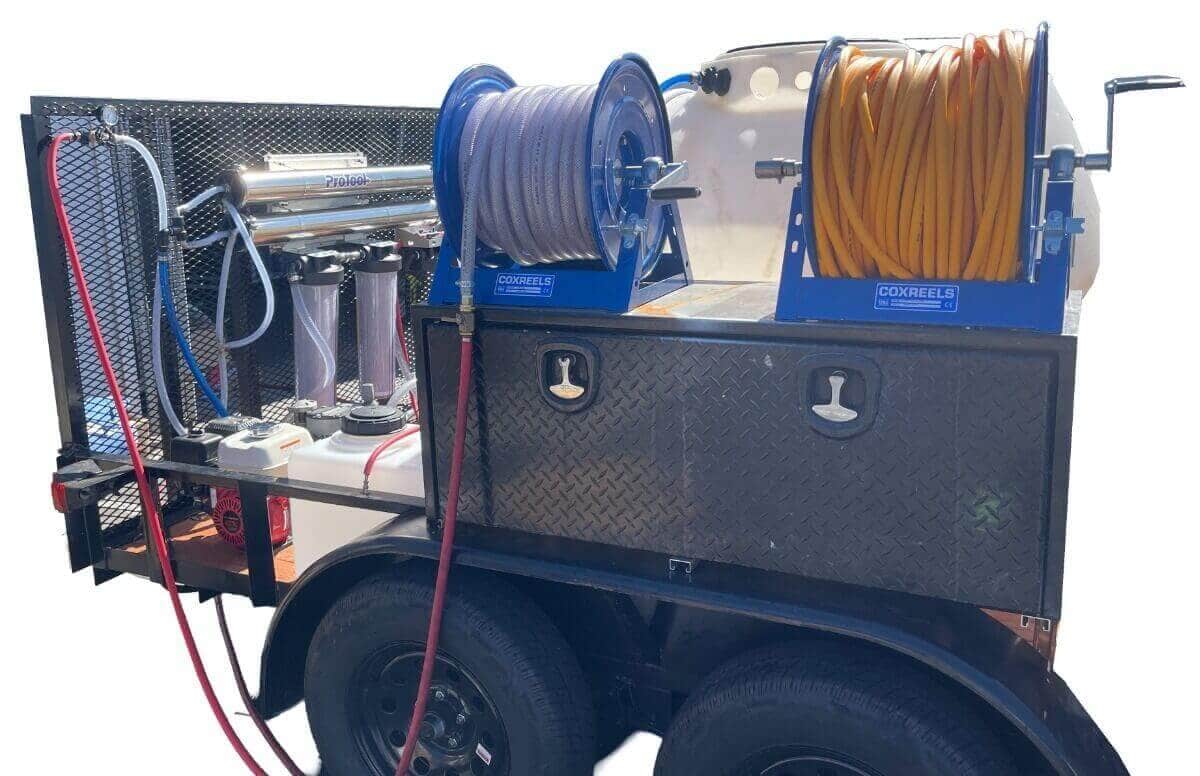

- 400-Gallon Buffer Tank: Stores and supplies water to the drone.
- On-Demand Filtration: Produces 5 GPM of pure water from a tap water source, 100 gallon tap water buffer tank and Pure Water filtration system
- Landing Areas: A safe landing Zone for Drone maintenance, transportation, battery exchange, and operator breaks.
- Hose Support: 300ft of 800psi hose is used to support the Drone.
- Spraying at 8GPM: Ensures efficient cleaning during the Drone Flying and Spraying minutes.

Operation:

Filtration and Supply:

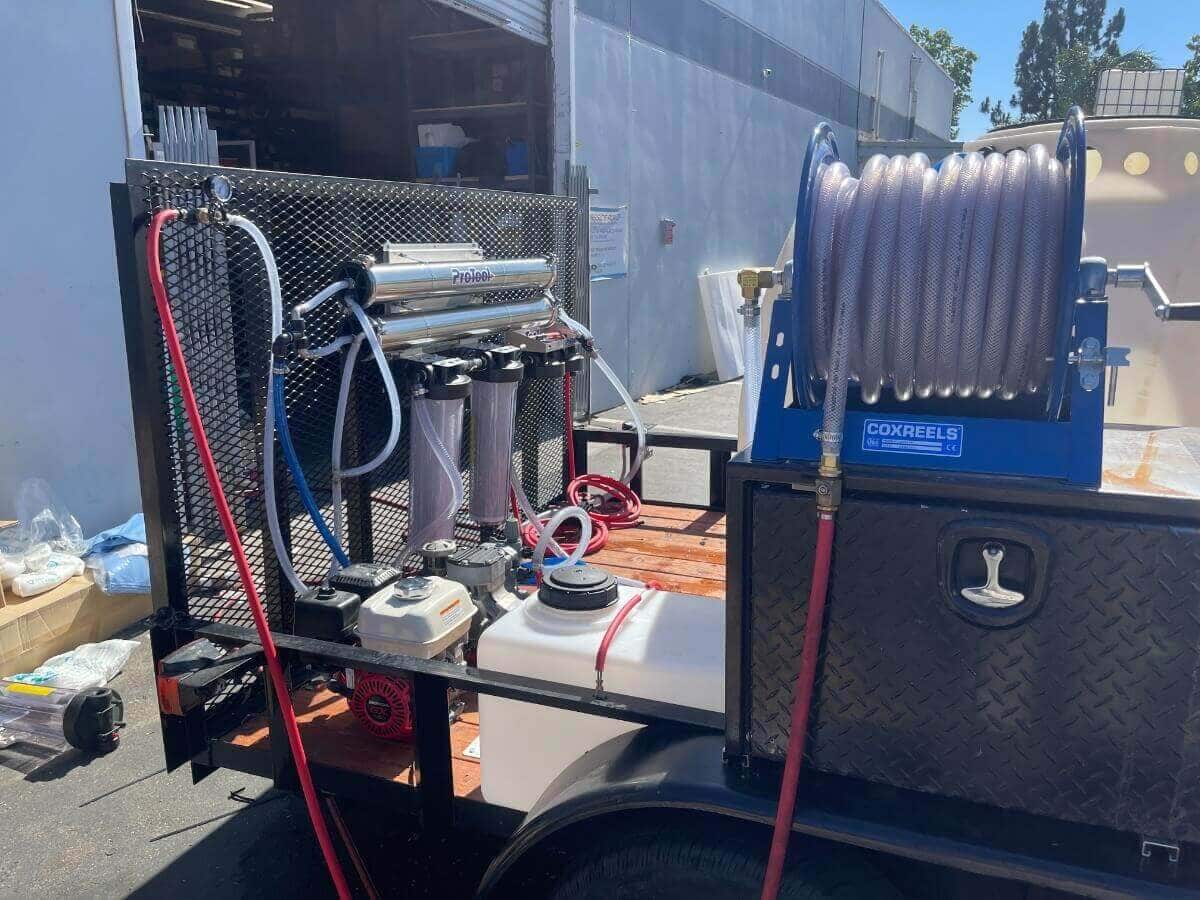

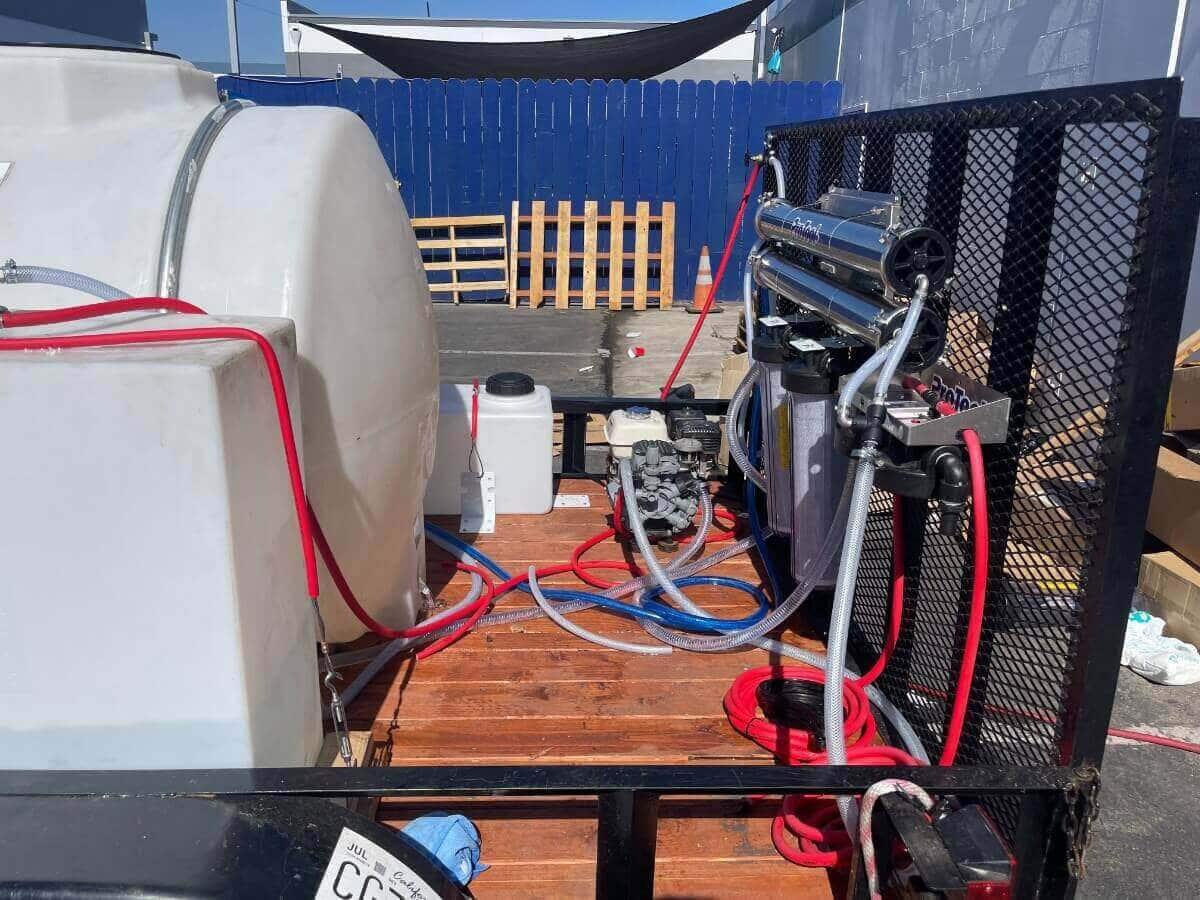

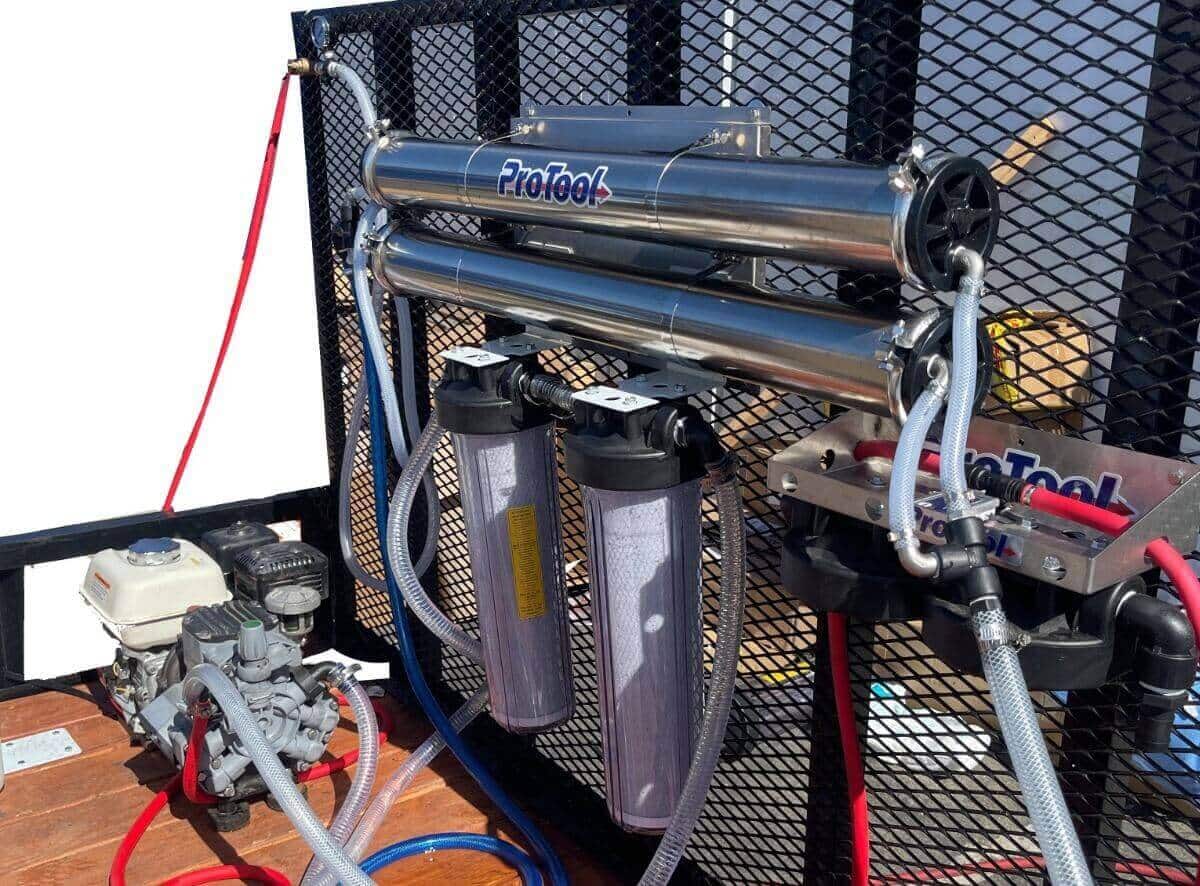

- RO Filtration: Produces 5 GPM of pure water, continuously feeding the buffer tank.
- Buffer Tank: Provides a 400-gallon reservoir, ensuring a steady supply for the drone's 8 GPM usage.
Drone Usage:
- Spraying: The drone operates in 20-minute intervals, spraying up to 8 GPM.
- Battery Exchange and Breaks: Allows for continuous operation and system replenishment.

Efficiency:

Pure Water Cleaning: Minimizes chemical usage, reduces hard water stains, and ensures a high-quality clean with sparkling rinses.
Water Management: The system's ability to produce and store water efficiently meets the drone's high demand during cleaning operations.

Example Schedule:

120 Minutes of Operation:
- 80 Minutes of Spraying: 8 GPM usage, consuming 640 gallons.
- 40 Minutes of Downtime: Battery exchanges, maneuvering and operator breaks allow the buffer tank to refill, The Drone is supported by 5 GPM of continuous RO Pure water production.

Advantages:

Less Chemical Use: Pure water cleaning significantly reduces the need for harsh chemicals.
High-Quality Finish: Ensures building surfaces and windows are free of hard water stains.
Efficient Water Management: The system's design maintains a balance between production and consumption, ensuring uninterrupted operation.

By integrating a high-capacity buffer tank and efficient RO filtration, this drone-based cleaning system maintains a consistent supply of pure water, ensuring optimal performance and superior cleaning results.

Example Work Schedule for Drone Building Cleaning

Operational Breakdown:

Setup and Initial Fill (30 minutes)

Water Production: 30 minutes at 5 GPM = 150 gallons.

First 4-Hour Cleaning Session:

Spraying (160 minutes):
- Drone sprays for three 20-minute sessions.
- Water Usage: 20 minutes x 8 GPM = 160 gallons per session.
- Total Water Used: 3 x 160 gallons = 480 gallons.
Battery Exchange and Breaks (60 minutes):
- Six 5-minute battery exchanges: 6 x 5 minutes = 30 minutes.
- Six 5-minute maneuvering periods: 6 x 5 minutes = 30 minutes.
- 10 minute break each 2 hours
Buffer Tank Refill During the Same 4 Hours
- 2400 minutes at 5 GPM = 1200 gallons produced.
Net Water in Buffer Tank Post Session:
- Initial Buffer: 150 gallons.
- Water Produced: 1200 gallons
- Water Used: 1280 gallons.
- Remaining : 60 Gallons

Lunch Break (60 minutes)

Water Production: 60 minutes at 5 GPM = 300 gallons.
Buffer Tank Status: 60 gallons + 300 gallons = 360 gallons.

Second 2-Hour Cleaning Session:

Spraying (160 minutes):
Drone sprays for three 20-minute sessions.
Water Usage: 20 minutes x 8 GPM = 160 gallons per session.
Total Water Used: 3 x 160 gallons = 480 gallons.
Battery Exchange and Breaks (60 minutes):
Six 5-minute battery exchanges: 6 x 5 minutes = 30 minutes.
Six 5-minute maneuvering periods: 6 x 5 minutes = 30 minutes.
10 minute break each 2 hours
Buffer Tank Refill During the Same 4 Hours
2400 minutes at 5 GPM = 1200 gallons produced.
Net Water in Buffer Tank Post Session:
Initial Buffer: 360 gallons.
Water Produced: 1200 gallons
Water Used: 1280 gallons.
Remaining : 280 Gallons

Operational Totals for 8 Hours:

Total Water Used: 2500 gallons.
Total RO Water Produced: 2850 gallons.

Summary:

The drone building cleaning system efficiently manages water use with a 400-gallon buffer tank. The RO filtration produces 5 GPM, staying ahead of the Drone due to the battery exchange , maneuvering downtime and operator breaks. This ensures a continuous supply of pure water, maintaining the drone's 8 GPM cleaning flow, and providing optimal cleaning results with minimal chemical use and hard water stains.

Larger RO Pure Water Production systems are available to create more water in 8 hours is operating needs demand more water
