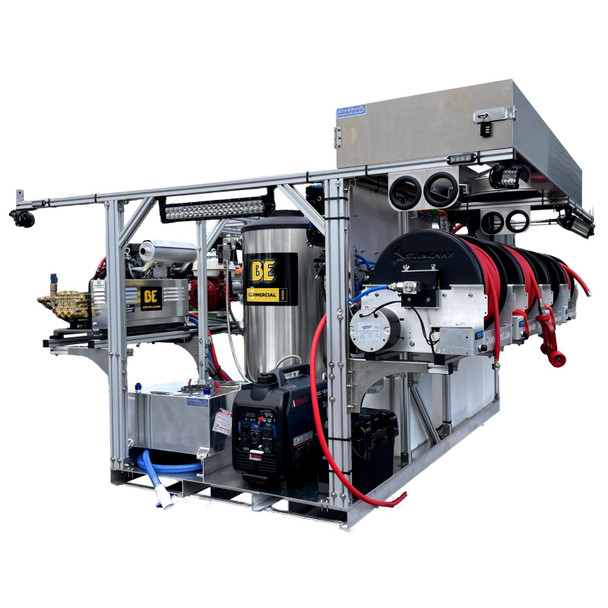

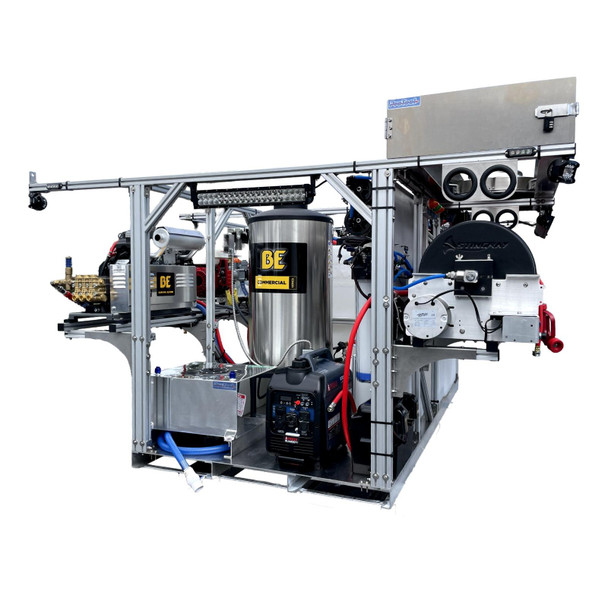

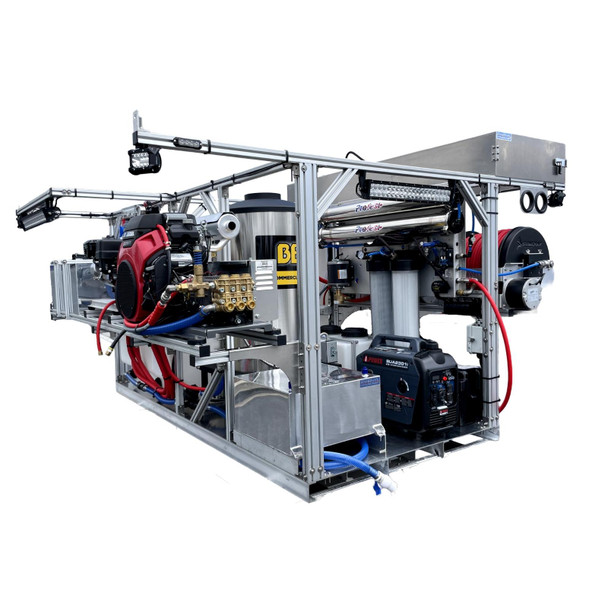

ProTool Commercial Hot Water Pressure Washing & Soft Washing Truck Skid
The ProTool Hot Water Pressure Washing & Soft Washing Truck Skid is a fully integrated commercial cleaning system built around serious hot water pressure washing power.
Mounted on an 8FT skid platform, this system combines an 8.5 GPM, 4,000 PSI Honda GX690 pressure washer, commercial hot water burner, gas-powered Comet BPX25 soft wash system, and HydroPanel 3.0 RODI pure water system into one high-capacity commercial cleaning rig.
This is more than a hot water pressure washer. It is a complete pressure washing and soft washing truck skid built for contractors who need to handle concrete, grease, commercial buildings, exterior surfaces, soft washing, and water fed pole window cleaning from one truck.
Add full remote controls, electric hose reels, oversized fuel capacity, onboard battery charging, 360° work lighting, and commercial electrical protection, and you've got a skid designed for long days and demanding commercial cleaning work.
8.5 GPM Hot Water Pressure Washing System
Hot water pressure washing is the centerpiece of this skid.
The system is powered by a Honda GX690 engine producing 8.5 GPM at up to 4,000 PSI and feeding through a dedicated commercial hot water burner.
The combination of high water flow, pressure, and heat gives commercial pressure washing contractors the cleaning power needed to attack difficult surfaces and contaminants where cold water pressure washing may not be enough.
This makes the skid ideal for:
-
Commercial concrete cleaning
-
Grease and oil removal
-
Dumpster pad cleaning
-
Restaurant cleaning
-
Fuel stations
-
Parking areas and structures
-
Heavy equipment washing
-
Fleet washing
-
Industrial cleaning
-
Commercial property maintenance
The pressure washing system includes 200 FT of 3/8" hot-water-rated high-pressure hose, allowing crews to work away from the truck while maintaining full hot water cleaning capability.
Commercial Hot Water Burner
The onboard hot water burner transforms the skid from a high-flow pressure washing system into a true commercial hot water pressure washing rig.
Temperature controls and the burner on/off switch are positioned for convenient access, allowing operators to control the hot water system without digging into the skid.
A dedicated 15-gallon diesel tank replaces the smaller standard burner tank, providing increased fuel capacity for long commercial cleaning jobs.
This is especially valuable for contractors regularly cleaning grease, oils, food residue, heavily soiled concrete, equipment, and other surfaces where heat can dramatically improve cleaning performance.
Downstream Degreaser System
The hot water pressure washing system is paired with dedicated downstream chemical capability.
An onboard degreaser tank allows operators to downstream cleaning chemicals before attacking heavily contaminated surfaces with hot water.
For greasy concrete, dumpster pads, restaurants, commercial facilities, and industrial cleaning, the combination of chemical + hot water + 8.5 GPM pressure washing gives contractors a powerful cleaning process from one truck skid.
Remote downstream control allows the operator to turn chemical application on or off without walking back to the truck.
19-Gallon Gasoline Tank
High-flow commercial pressure washing requires fuel capacity to match.
Instead of relying on a small engine-mounted fuel tank, this skid includes a dedicated 19-gallon gasoline tank for the gas-powered equipment.
The large tank is designed to reduce interruptions during long workdays and can conveniently be filled while fueling the truck.
Combined with the 15-gallon diesel burner tank, the skid is built to spend more time cleaning and less time stopping for fuel.
Gas-Powered BPX25 Soft Washing System
Hot water pressure washing is only part of what this skid can do.
A dedicated Comet BPX25 gas soft wash system gives contractors approximately 7 GPM at up to 220 PSI for professional soft washing, building washing, roof cleaning, chemical application, and exterior cleaning.
The gas-powered soft wash system features electric start and is integrated directly into the skid's remote control system.
3/4" Clear Soft Wash Metering Manifold
The BPX25 feeds through our 3/4" clear soft wash metering manifold, providing control over:
-
Water
-
Bleach / SH
-
Surfactant / soap
The clear manifold makes chemical settings easy to see while giving the high-flow BPX25 the plumbing capacity it needs.
Operators can adjust their soft wash mixture for the surface and cleaning application instead of being locked into a single chemical ratio.
Set-and-Forget Soft Wash Pressure Regulation
The BPX25 soft wash system also features our set-and-forget pressure regulator.
Once the maximum pressure is set, the system prevents pressure from exceeding that setting as the operator changes guns, tips, hose lengths, or cleaning configurations.
Switch to a shooter tip. Change your gun. Add hose. Change your cleaning setup.
The system maintains the pressure limit you've established without requiring constant regulator adjustments.
Full Remote Soft Washing Controls
The soft wash system includes remote control over its major functions.
From the work area, operators can remotely:
-
Start the soft wash engine
-
Stop the soft wash engine
-
Turn chemical on/off
-
Turn soap on/off
-
Return the system to rinse water
Soap and bleach controls are separated.
That means operators can run soap without bleach for general cleaning, chemical without soap for applications such as concrete treatment, or use the complete soft wash mixture when cleaning organic contamination.
Remote Hot Water Pressure Washing Controls
The main pressure washing system also features remote control.
Operators can remotely:
For large commercial properties, that means significantly less walking back to the truck every time you need to change what the pressure washing system is doing.
The result is a hot water pressure washing skid designed around how commercial crews actually work.
HydroPanel 3.0 RODI Pure Water System
This skid doesn't stop at pressure washing and soft washing.
The onboard ProTool HydroPanel 3.0 adds professional RODI pure water production for water fed pole window cleaning.
The HydroPanel 3.0 produces approximately 3 GPM of pure RODI water, providing enough capacity to support multiple water fed pole operators depending on the application and available incoming water.
This allows the same truck to perform:
Instead of sending separate crews or vehicles for pressure washing and window cleaning, one commercial cleaning truck can arrive equipped to do both.
300 FT Water Fed Pole Delivery
The HydroPanel 3.0 feeds a dedicated water fed pole delivery system with 300 FT of 3/8" water delivery hose.
With approximately 3 GPM available, the system can be split when appropriate to support two or potentially three water fed pole operators.
A three-way inlet valve controls whether incoming water is directed toward the skid's tank system or the HydroPanel, making it easy to transition between pressure washing, soft washing, and pure water window cleaning.

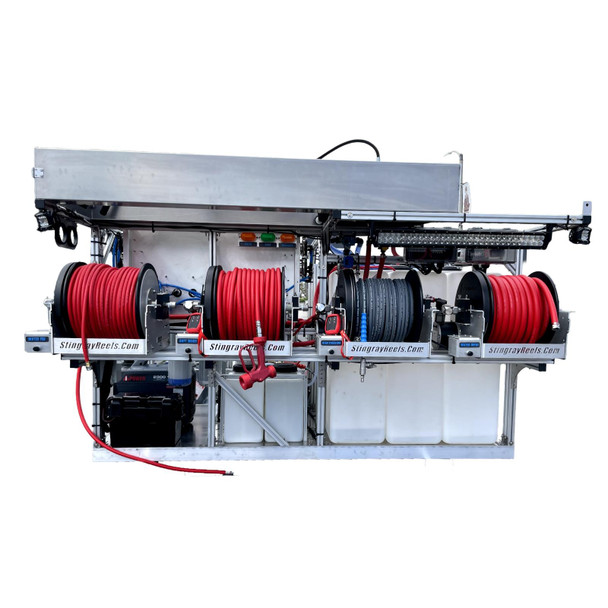

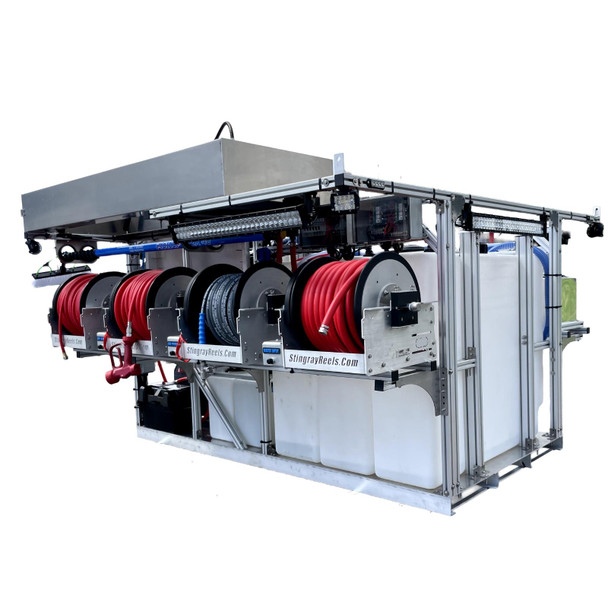

Curbside Hose Reel System
The working side of the skid is arranged around convenient curbside hose deployment.
The commercial hose package includes:
-
300 FT of 3/8" water fed pole delivery hose
-
300 FT of 1/2" 300 PSI soft wash hose
-
200 FT of 3/8" hot-water-rated pressure washing hose
-
150 FT of 3/4" water inlet hose
The high-capacity 3/4" water inlet system demonstrated approximately 9–10 GPM of incoming flow when supported by the building water supply, helping feed the high-flow pressure washing and cleaning equipment onboard the skid.
Commercial Electrical System
With electric reels, remote controls, lighting, charging, and multiple powered systems onboard, electrical design matters.
Every powered component on this skid is protected through an appropriately sized circuit breaker.
The system includes:
-
Master circuit breaker
-
Individual component circuit protection
-
Organized electrical distribution
-
Protected remote-control circuits
-
Protected hose reel circuits
-
Protected lighting circuits
-
Accessible wiring for service and future equipment additions
The result is a clean commercial electrical system designed as part of the skid rather than added as an afterthought.
Battery Isolator & Truck Charging
An onboard battery isolator allows the skid battery to be connected to the truck's charging system.
While driving between jobs, the truck can recharge the skid's battery.
That helps support the electrical demands of the hose reels, remote systems, lighting, and other equipment without requiring crews to constantly connect an external battery charger.
360° Work Lighting
Commercial pressure washing doesn't always happen during daylight hours.
The skid includes extensive work lighting positioned around the truck to provide 360° illumination of the surrounding work area.
Lighting is positioned along both sides as well as the front and rear of the system, helping crews work around the truck during early mornings, evenings, and low-light commercial cleaning jobs.
Individual rocker switches provide control over the different lighting circuits.
Amber & White Safety Lighting
High-visibility amber and white warning lights are installed at the front and rear corners of the skid.
These lights help increase vehicle visibility when crews are working around:
-
Roads
-
Parking lots
-
Pedestrian areas
-
Commercial properties
-
Loading areas
-
Active traffic
For commercial pressure washing contractors regularly working around customers, vehicles, employees, and pedestrians, visibility around the work truck is an important part of the overall build.
One Commercial Truck. Multiple Cleaning Services.
The ProTool Hot Water Pressure Washing & Soft Washing Truck Skid is designed to turn an 8FT truck platform into a complete commercial exterior cleaning rig.
At its core is a serious 8.5 GPM hot water pressure washing system.
Around that we've built a complete commercial cleaning platform with gas soft washing, RODI pure water production, water fed pole delivery, remote controls, long-range hose reels, high-capacity fuel storage, work lighting, safety lighting, and protected electrical distribution.
That gives contractors one truck capable of tackling:
-
Hot water pressure washing
-
Commercial pressure washing
-
Concrete cleaning
-
Grease and oil removal
-
Soft washing
-
Building washing
-
Roof cleaning
-
Commercial window cleaning
-
Water fed pole cleaning
-
Fleet washing
-
Heavy equipment cleaning
-
Industrial exterior cleaning
-
Commercial property maintenance
Built for Commercial Pressure Washing Contractors
This skid is designed for contractors who need more than a basic pressure washing setup.
It's a commercial hot water pressure washing skid, a gas soft washing skid, and a pure water window cleaning system integrated into one professional 8FT truck platform.
With 8.5 GPM at 4,000 PSI, hot water, a BPX25 soft wash system, HydroPanel 3.0, full remote controls, high-capacity fuel storage, commercial hose delivery, and integrated electrical and lighting systems, this rig is built to handle serious commercial exterior cleaning.
Hot water pressure washing. Soft washing. Pure water window cleaning. One commercial truck skid built to do it all.
Quick Overview
Product Type
-
Commercial hot water pressure washing truck skid
-
8FT truck-mounted exterior cleaning skid
-
Integrated pressure washing, soft washing, and pure water cleaning system
-
Designed for professional commercial exterior cleaning contractors
Primary Services
-
Hot water pressure washing
-
Commercial pressure washing
-
Soft washing
-
Building washing
-
Concrete cleaning
-
Degreasing
-
Water fed pole window cleaning
-
Pure water cleaning
-
Fleet and equipment washing
-
Commercial property maintenance
Pressure Washing
-
Flow: 8.5 GPM
-
Maximum pressure: 4,000 PSI
-
Engine: Honda GX690
-
Commercial high-flow pressure washing system
-
Hot-water capable
-
Remote engine start and stop
-
Remote downstream chemical control
-
200 FT of 3/8" hot-water-rated high-pressure hose
Hot Water
-
Dedicated commercial hot water burner
-
Burner fuel: Diesel
-
Diesel capacity: 15 gallons
-
Accessible burner on/off switch
-
Adjustable temperature control
-
Designed for grease, oil, concrete, equipment, fleet, restaurant, dumpster pad, and industrial cleaning
-
Dedicated downstream degreaser capability
Soft Wash
-
Pump: Comet BPX25
-
Pump type: Gas-powered diaphragm pump
-
Flow: Approximately 7 GPM
-
Maximum pressure: Approximately 220 PSI
-
Electric-start engine
-
3/4" clear chemical metering manifold
-
Separate water, bleach/SH, and soap metering
-
Set-and-forget pressure regulator
-
300 FT of 1/2" 300 PSI soft wash hose
-
Soft wash gun included
Pure Water
-
System: ProTool HydroPanel 3.0
-
Filtration: RODI
-
Pure water production: Approximately 3 GPM
-
Designed for professional water fed pole cleaning
-
Capable of supporting multiple water fed pole operators depending on operating conditions and incoming water supply
-
300 FT of 3/8" pure water delivery hose
-
Three-way water inlet valve directs incoming water between tank supply and HydroPanel
Remote Controls
-
Remote pressure washer start
-
Remote pressure washer stop
-
Remote downstream chemical control
-
Remote soft wash engine start
-
Remote soft wash engine stop
-
Remote bleach/chemical control
-
Remote soap control
-
Remote rinse capability
-
Allows operators to control major cleaning functions from the work area
Fuel System
-
Gasoline capacity: 19 gallons
-
Diesel capacity: 15 gallons
-
High-capacity fuel storage designed for extended commercial operation
-
Dedicated diesel supply for hot water burner
-
Large gasoline supply for gas-powered equipment
Hose Reels & Hose Package
-
Curbside hose delivery configuration
-
300 FT x 3/8" water fed pole delivery hose
-
300 FT x 1/2" 300 PSI soft wash hose
-
200 FT x 3/8" hot-water-rated high-pressure hose
-
150 FT x 3/4" water inlet hose
-
High-flow water inlet plumbing
-
Demonstrated incoming water flow of approximately 9–10 GPM when supported by available building water supply
Electrical System
-
Central master circuit breaker
-
Individual circuit protection for powered components
-
Protected lighting circuits
-
Protected remote-control circuits
-
Protected hose reel circuits
-
Organized commercial electrical system
-
Waterproof electrical enclosure
-
Accessible electrical layout for service and future additions
Battery & Charging
-
Dedicated onboard battery
-
Integrated battery isolator
-
Can be connected to vehicle charging system
-
Truck can recharge skid battery while driving
-
Designed to support remote systems, hose reels, lighting, and other 12V equipment
Work & Safety Lighting
-
360-degree work lighting
-
Multiple work lights positioned around driver side, passenger side, front, and rear
-
Independently controlled lighting circuits
-
Amber and white high-visibility warning lights
-
Designed to improve visibility around traffic, parking lots, pedestrian areas, and commercial jobsites
Construction & Layout
-
8FT truck skid platform
-
Commercial truck-mounted configuration
-
Curbside equipment and hose access
-
Integrated pressure washing, soft washing, hot water, and pure water equipment
-
Space retained for generator and additional equipment
-
Equipment arranged for accessibility, operation, and service
Applications
-
Commercial pressure washing
-
Hot water pressure washing
-
Commercial building washing
-
Soft washing
-
Roof cleaning
-
Concrete cleaning
-
Grease and oil removal
-
Dumpster pad cleaning
-
Restaurant exterior cleaning
-
Fuel station cleaning
-
Parking area cleaning
-
Fleet washing
-
Heavy equipment washing
-
Industrial exterior cleaning
-
Water fed pole window cleaning
-
Commercial glass cleaning
-
Property and facility maintenance
Key Advantages
-
Hot water pressure washing, soft washing, and pure water cleaning on one truck skid
-
High-output 8.5 GPM / 4,000 PSI pressure washing system
-
Honda GX690 power
-
Commercial hot water capability
-
Gas-powered BPX25 soft wash system
-
HydroPanel 3.0 RODI pure water production
-
Full remote pressure washing and soft washing controls
-
High-capacity gasoline and diesel storage
-
Long-range commercial hose package
-
Curbside hose deployment
-
Integrated battery charging
-
Comprehensive electrical circuit protection
-
360-degree work lighting
-
High-visibility safety lighting
-
Designed as a complete multi-service commercial exterior cleaning platform
