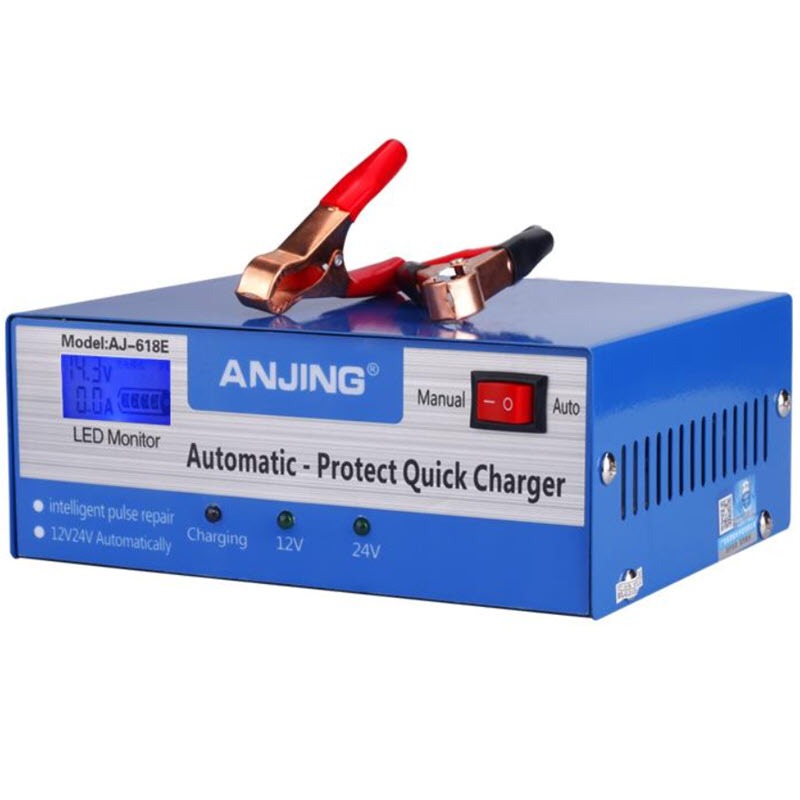

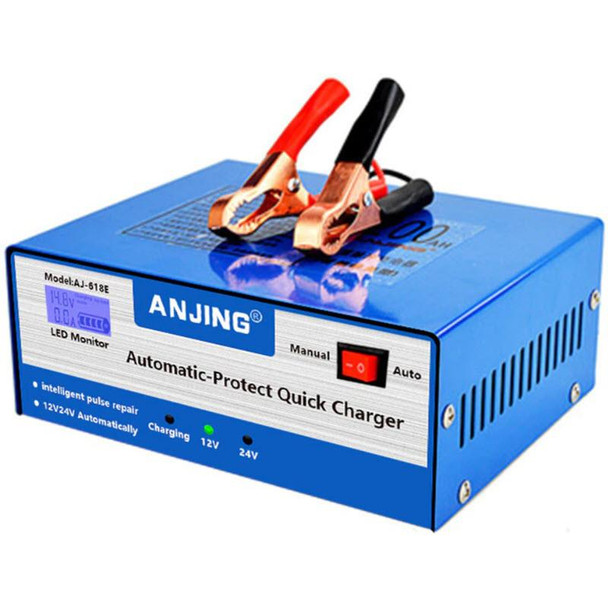

ProTool Battery Fast Smart Pulse Charger 130watt 12v or 24v

Battery Fast Smart Pulse Charger

130watt for 12v or 24v Battery Charging

A modern battery charge that offers automatic monitoring control over your battery charging for 12v or 24v batteries. Simple to use and full of protections to keep the battery and charging process safe.

The charger offers rapid heat dissapation and is stable while fast charging the batteries.

The Digital display offers constant monitoring in real time of the charging process.

  Specifications:

• Smart Pulse Charge with 5 Level of charging
• Output Current at 12v 12amps
• Output Current at 24v 10amps
• Capable of Smart Charging 6ah to 200ah batteries
• Compact in Size at 7in wide by 5.75 in deep by 2.75in High

Fast Charging

Intelligent Protections

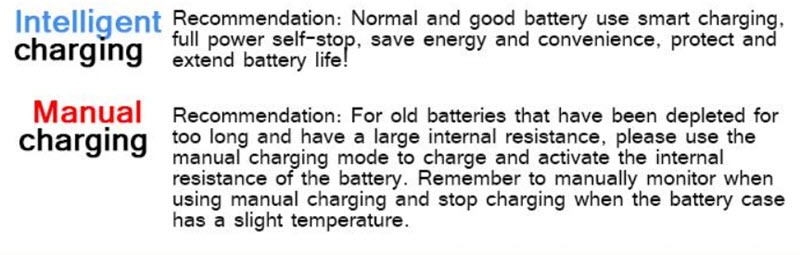

Automatic Mode offers intelligent charging of the battery to protect and extend the life of the battery. Automatic mode Steps through 5 levels of charge and continously monitors the charging cycle turning off when the charge is complete.

Manual Mode is used to bring old batteries that have been depleted for a long period of time and have developed a large internal resistance to charging.

Note: Remember when using Manual mode that you need to monitor the battery charge process and watch for for excessive heat which can lead to battery swelling and turn off the carger at the completion of 100% charged.

You can start charging a depleted battery in manual mode for a few hours then switch to automatic mode to allow the smart charger to monitor the charging task and stop charging when completed.

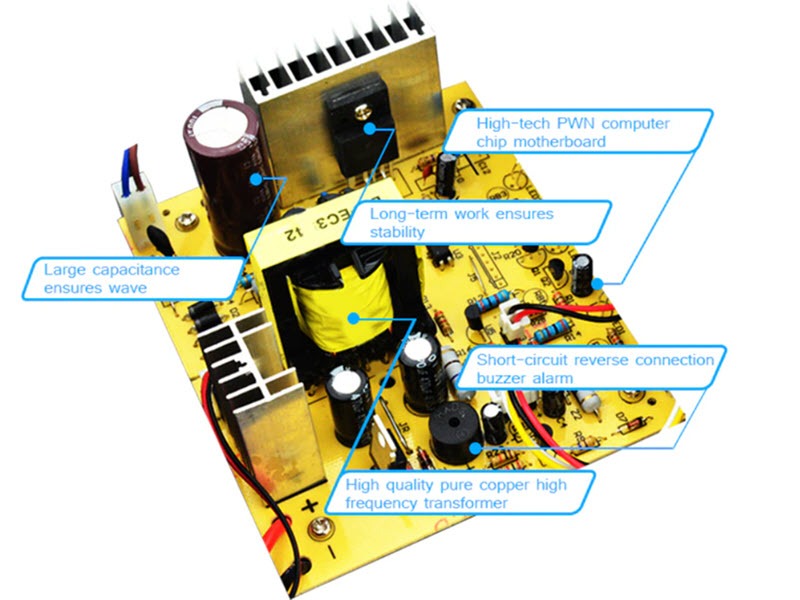

Microcomputer Intelligent Pulse Chager
