Description

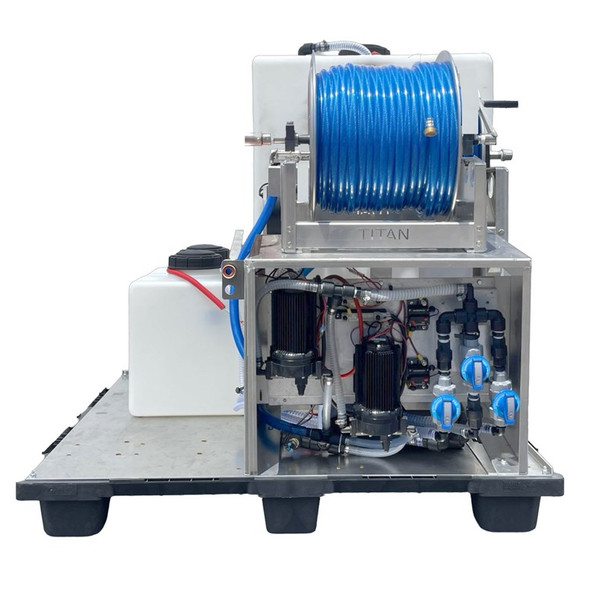

ProTool Soft Wash Skid 12V
Introducing our Softwash Skid with ProTool Metering Valves and 80 gallon SH tank, specifically designed to revolutionize the soft washing process. This comprehensive system includes a 80-gallon SH tank and is equipped with precision metering valves, making it the perfect solution for professionals in the soft washing industry.
Key Features:
Precision Metering Valves: This system features three metering valves for water, sodium hypochlorite (bleach), and detergent/surfactant. These valves allow simultaneous drawing of bleach and surfactant into your soft washing solution, ensuring optimal mixing and application.
Convenient On-Board Mixing: Mix surfactants directly at the control panel without the need for manual measuring or mixing in a separate tank. This innovative feature allows for on-the-fly adjustments of mix ratios depending on the surface being cleaned, enhancing efficiency and accuracy.

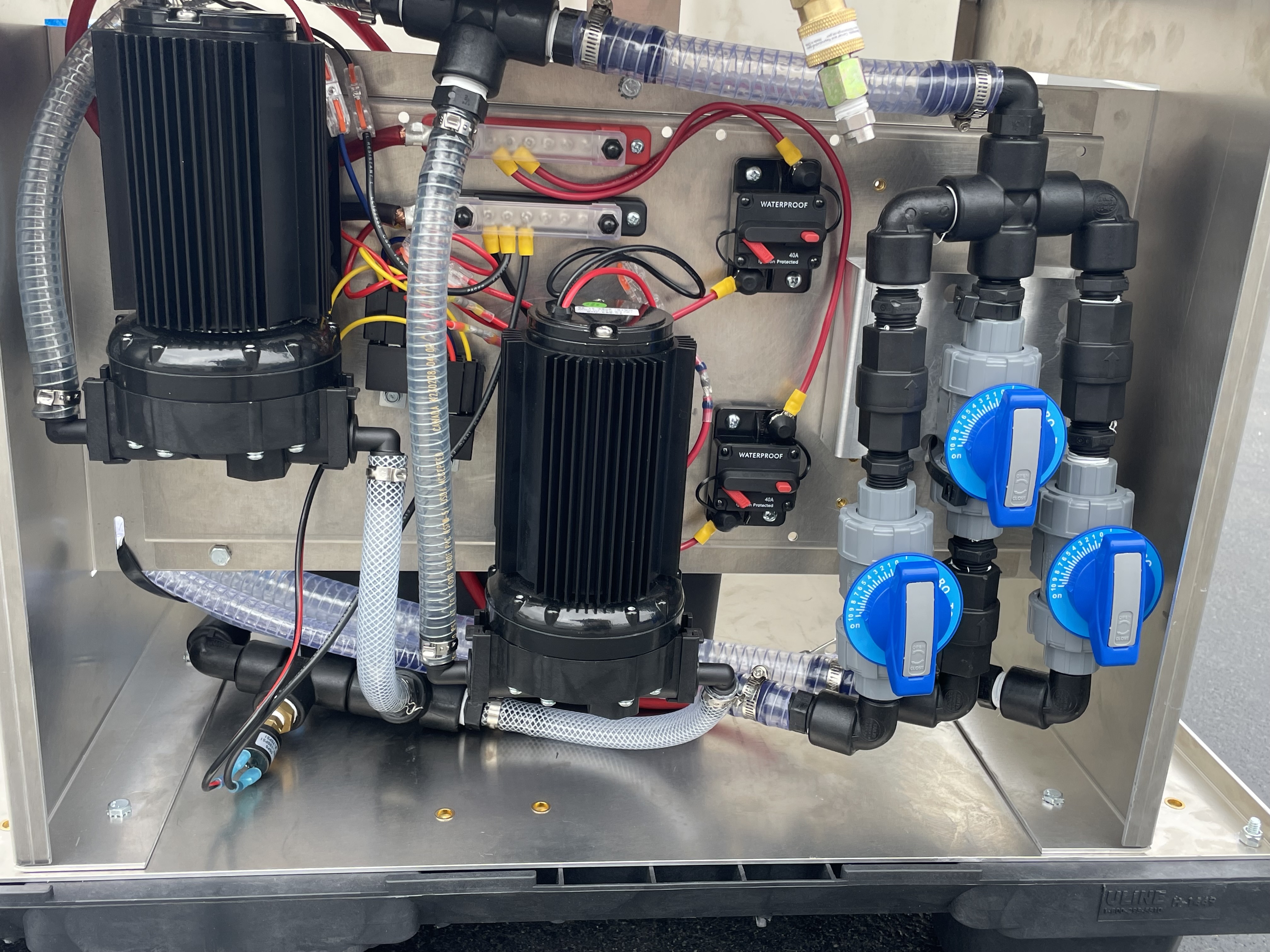

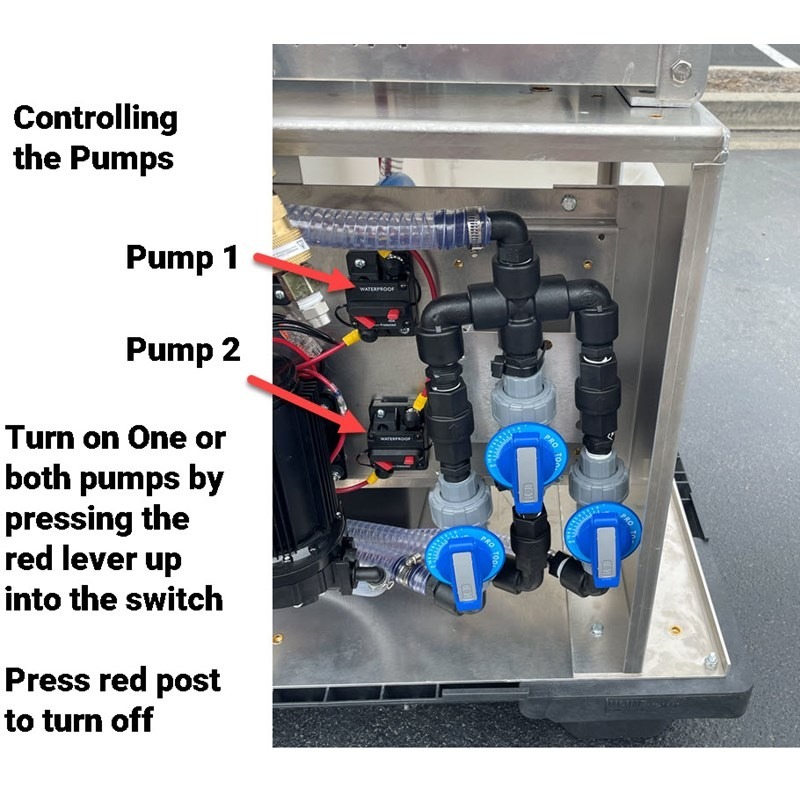

Dual 12V 90 PSI Pumps: The system is powered by two robust 12V, 90 PSI pumps with a 5 GPM open flow rate. When combined, they provide an exceptional flow, perfect for all your soft washing requirements. The dual pump setup ensures that even if one pump fails, you still have sufficient flow and pressure to complete the job. Dual pumps combine for 10gpm+ open flow and 90 PSI. This system pushes 5gpm through the 200ft of 1/2" hose, spraying gun, and tip.
Integrated Buffer and Concentrate Tanks: Includes a 7-gallon water buffer tank and a 7-gallon detergent/surfactant concentrate tank, providing ample capacity and ease of use for extended operations.
Safety and Efficiency: Designed to minimize chemical overuse and eliminate the need for manual calculations or chemical measuring, this system significantly reduces time and increases safety by keeping technicians away from traffic flow when adjusting surfactants or mix ratios.
Product Specifications:
- SH Tank Capacity: 80 gallons
- Water Buffer Tank Capacity: 7 gallons
- Detergent/Surfactant Tank Capacity: 7 gallons
- Pump Specifications: Two 12V, 90 PSI, 5 GPM (Open Flow)
- ProTool Metering Valves: Three, for precise chemical mixing
- Aluminum Reel with SS manifold and Swivel
- 200ft of 1/2in ProTool Blue Braid Spraying Hose

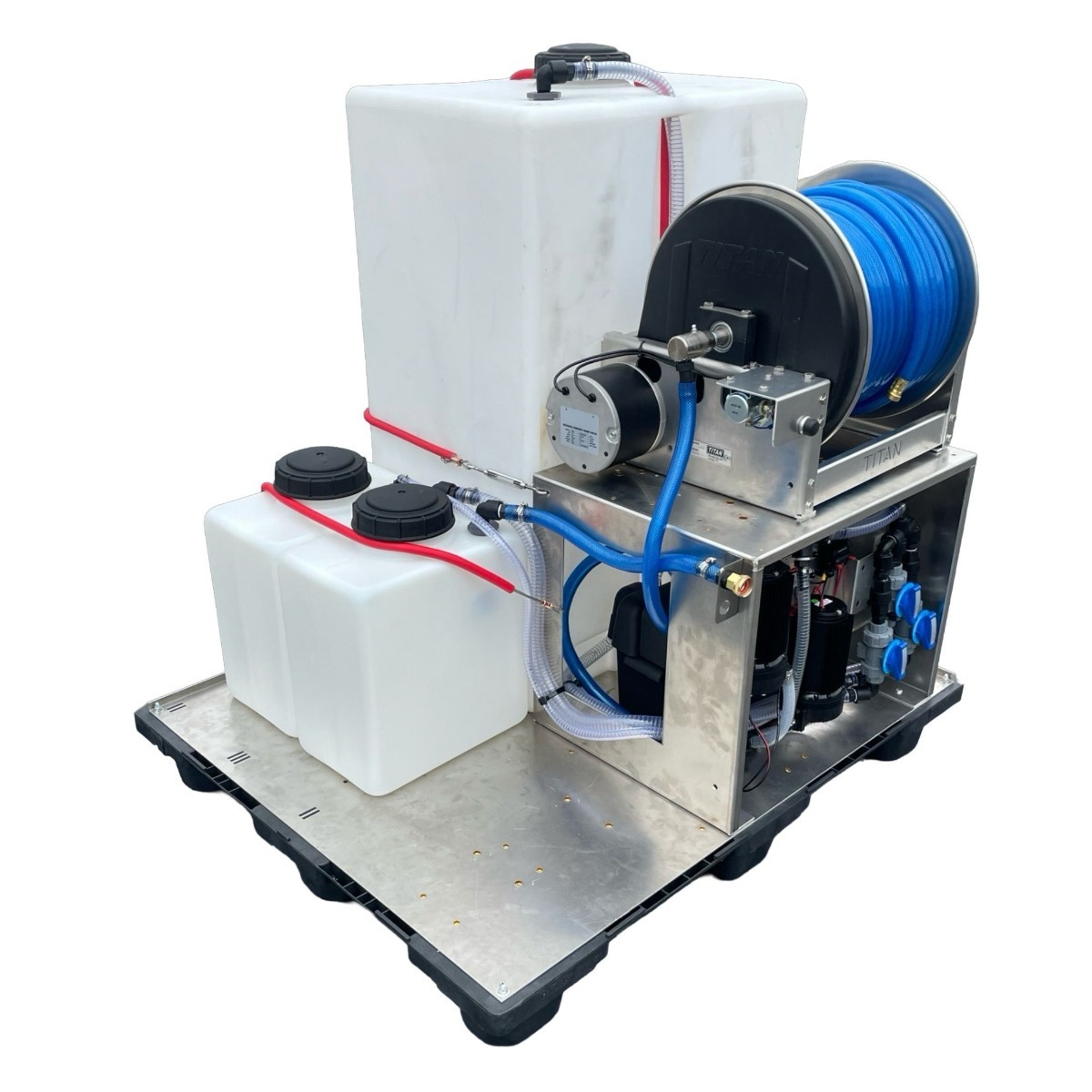

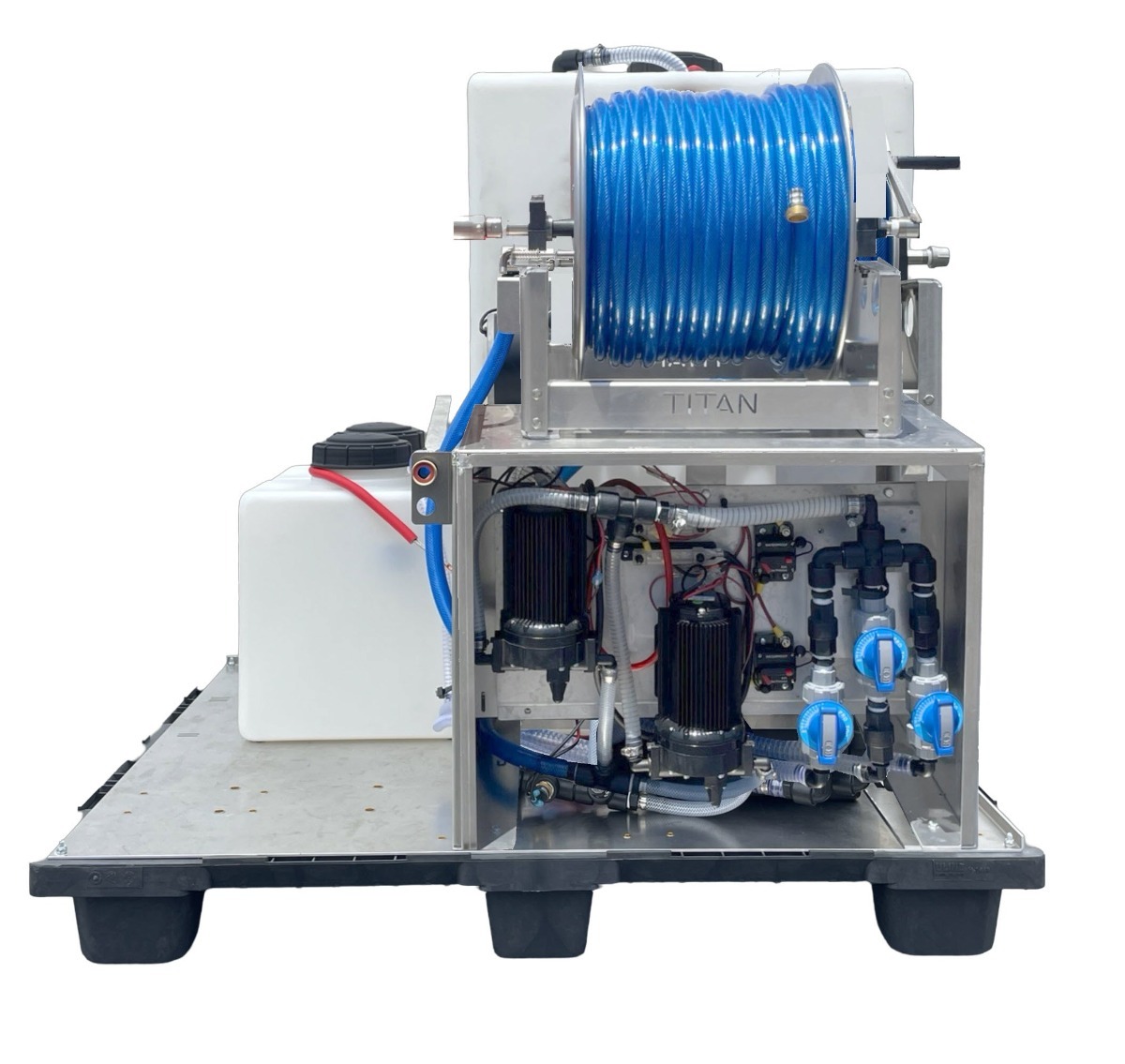

Shown below with Optional Electric Reel
*** ELECTRIC REEL DEPICTED OPTIONAL, NOT INCLUDED ***
Flow Rate Chart
Here are flow rates for various tip orifices sizes.
Tip — Flow vs Distance
| TIP | FLOW | DISTANCE | |
|---|---|---|---|
| 20 | 2.0 GPM | 30 ft | |
| 30 | 3.1 GPM | 33 ft | |
| 40 | 4.1 GPM | 40 ft | |
| 50 | 5.2 GPM | 45 ft | |
| 60 | 6.4 GPM | 46 ft | |
| .23" | 7.8 GPM | 42 ft |
Features:
- Dual pumps capable of delivering 7.4 GPM at 60 PSI and 5.2gpm 90 PSI, ensuring efficient soft wash operations
- ProTool Metering valves provide full control over water, sodium hypochlorite (SH), and surfactant ratios for precise customization of soft wash mixtures
- 10,000lb cable straps to secure tanks.
- Empowers both professional contractors to achieve optimal soft wash results with ease
- Robust construction and reliable performance enhance productivity and minimize downtime.
- Ideal for cleaning residential exteriors, commercial buildings, and industrial facilities with outstanding efficiency and effectiveness
Skid specs:
- Dimensions are 48in wide by 40in long and 48in high
- Fits between an F150 wheel wells with ease.
- Fits in the back of a Tacoma and Maverick when turned sideways, facing the curb.
- Weighs approx. 250lbs dry. Approx. 1000 lbs fully loaded.

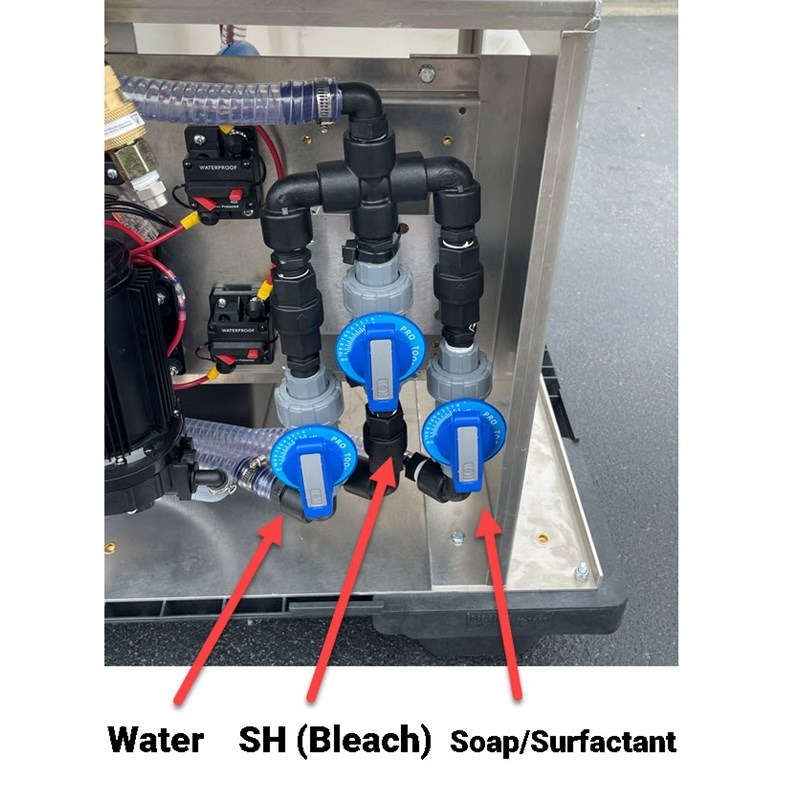

Mixing Setup - Metering Initial Setup
There is no exact science to where the valves are going to be set for your spraying needs. This will get you close to start and you will need to tune to your needs. The goal is to use as little sH and Surfactant as possible and still get a fast complete and well spread out spray that sticks to the surface from the wand.
- The Water Valve is set to 10
- The Bleach Valve is set to 10
- The Surfactant is set t0 1 to 2
When Targeting a 3% sH mix using 12.5%
- The Water Valve is set to 10
- The Bleach Valve is set to 4
- The Surfactant is set t0 1 to 2
- The Water Valve is set to 10
- The Bleach Valve is set to 2
- The Surfactant is set t0 1 to 2
6% Retail Bleach or stale 12.5% SH or Stale 10% Pool Bleach where the contents have degraded to less potency.
This can easily happen with store bought beach that was on the shelf for 6 months...
