Description
Pump Motor, 1/3 HP –
High-Efficiency Solution for Pure Water RODI and Water Pump Applications
Elevate your RODI Cart and liquid transfer systems with this high-performance 1/3 HP Carbonator Pump Motor, engineered for seamless operation in carbonator pumps and beverage dispensers. Featuring a split-phase motor design with an open dripproof enclosure, this motor delivers a steady 1,725 RPM at 115V AC, ideal for applications requiring consistent flow, such as syrup pumps and other hub-mounted pump systems. Constructed with ball bearings, a durable steel frame, and automatic thermal protection, it meets stringent CSA (258501) and UL (37403) standards for safety and reliability. Its compact design and versatile mounting make it a top choice for maintenance or upgrades in commercial settings.
Key Features:
- Power & Speed: 1/3 HP, 1,701-1,800 RPM range (1,725 nameplate), single-phase, 60 Hz, with 6.5 full load amps.
- Dimensions: Shaft diameter 5/8 in, shaft length 1/2 in, overall length 7 11/16 in.
- Mounting & Compatibility: 48 frame, cradle base mounting, voltage compatibility with 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC, operable up to 40°C ambient temperature.
- Design & Durability: Open dripproof enclosure, Class B insulation, reversible CW/CCW rotation, continuous duty cycle with a service factor of 1.
- Standards & Applications: CSA (258501) and UL (37403) certified; perfect for carbonator pumps, vending machine pumps, and liquid transfer machines.
This Carbonator Pump Motor ensures minimal downtime and maximum efficiency with its robust build and precise engineering. Its compact size and flexible voltage compatibility make it an excellent fit for a variety of commercial pump applications. Always confirm compatibility with your equipment before installation.
Replacement in a water system is straighforward:
Tools Required:
A Couple screwdrivers and some Wrenches for the 4 bolts to the frame and a plier for the Electrical hard connection.
First ! Unplug the unit
1) Remove the Cover on the motor and expose the wires, (take a picture to get the wires in the same places)
2) remove the wires from the motor.
3) Loosen the "Ring Connector" this clamp like ring that holds the pump to the motor Leave the Ring Connector/clamp on the pump
4) Seperate the pump from the motor (just 1inch is enough)
5) Remove the 4 Mounting Bolts
6) Remove the motor.
Assembly
1) Place the motor on the cart and attach with 4 mounting bolts

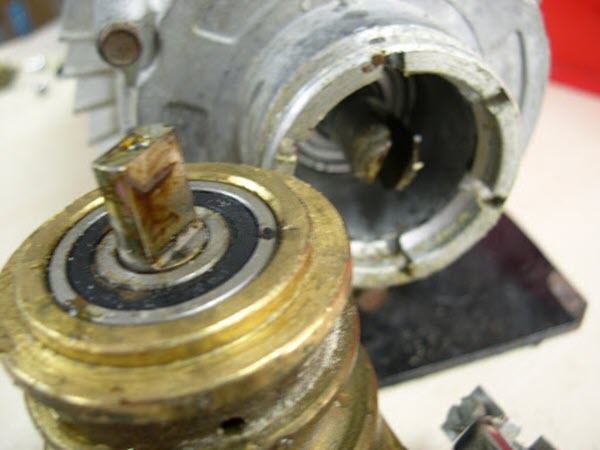

2) Line up the pump shaft and motor slot and attach to end

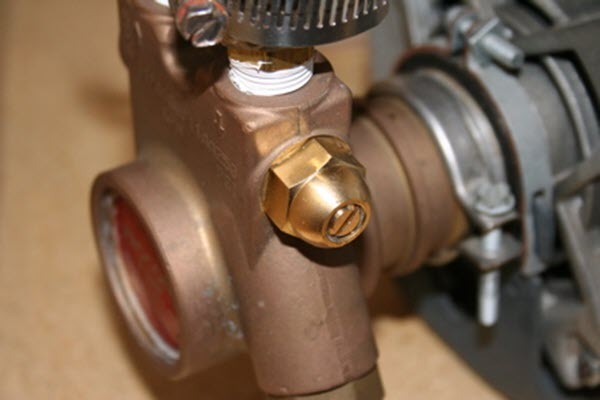

3) Slip the ring connector over the pump and the motor attaching rings and tighten
4) insert the wires and connect per the picture
5) Close up the connector and replace the cover.
