Description

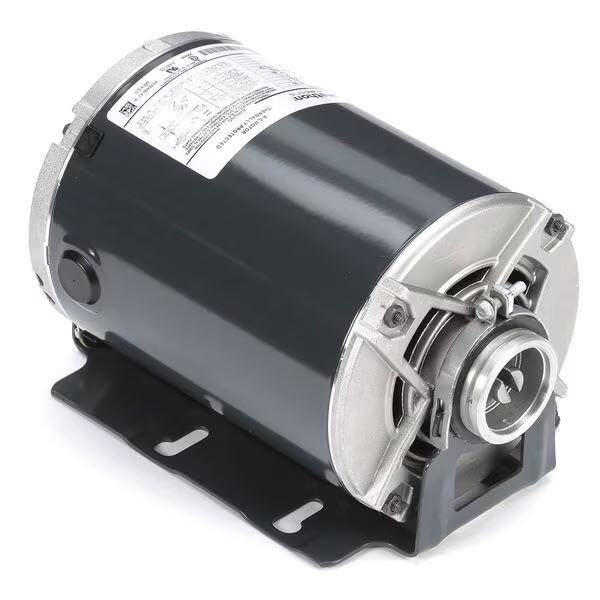

Pump Motor, 3/4 HP – Reliable Performance for Pure Water RODI and Liquid Transfer Applications
Power your carbonator pumps and vending machines with this durable 3/4 HP Carbonator Pump Motor, designed for efficient liquid transfer in demanding environments. Featuring a split-phase motor design with a cradle base mount and open dripproof enclosure, this motor delivers consistent 1,725 RPM performance at 115/230V AC, ensuring smooth operation for beverage dispensers, syrup pumps, and other hub-mounted applications. Built with steel frame construction, ball bearings, and auto thermal protection, it meets rigorous standards including CE Mark, CSA Certified, and UL Recognized for safety and reliability.
Key Features:
- Power & Speed: 3/4 HP, 1,701-1,800 RPM range (1,725 nameplate), single-phase, 60 Hz, with 10.4/5.2 full load amps.
- Dimensions: Shaft diameter 5/8 in, overall length 9 1/8 in, length less shaft 9 in, height 5 13/16 in, body diameter 5.6 in, shaft length 1/4 in.
- Mounting & Compatibility: 48Y frame, cradle base mounting (all-angle position), voltage compatibility 115/200-230V AC, usable up to 40°C ambient temperature.
- Design & Durability: Open dripproof enclosure, continuous duty cycle, Class B insulation, reversible CW/CCW rotation, no speeds at 200V/208V.
- Standards & Applications: CE Mark, CSA Certified, UL Recognized; ideal for vending machine pumps, liquid transfer machines, and other carbonator systems; 22 lb weight.
This motor's robust build and precise engineering minimize downtime while maximizing efficiency in commercial beverage and vending setups. Compatible with a range of voltages and enclosures, it's a trusted choice for maintenance and replacements. Always verify compatibility with your equipment.
Replacement in a water system is straighforward:
Tools Required:
A Couple screwdrivers and some Wrenches for the 4 bolts to the frame and a plier for the Electrical hard connection.
First ! Unplug the unit
1) Remove the Cover on the motor and expose the wires, (take a picture to get the wires in the same places)
2) remove the wires from the motor.
3) Loosen the "Ring Connector" this clamp like ring that holds the pump to the motor Leave the Ring Connector/clamp on the pump
4) Separate the pump from the motor (just 1inch is enough)
5) Remove the 4 Mounting Bolts
6) Remove the motor.
Assembly
1) Place the motor on the cart and attach with 4 mounting bolts
2) Line up the pump shaft and motor slot and attach to end
3) Slip the ring connector over the pump and the motor attaching rings and tighten
4) insert the wires and connect per the picture
5) Close up the connector and replace the cover.
