3-Stage vs 4-Stage RODI Carts: What Actually Matters

The 3-stage vs 4-stage RODI cart debate comes up constantly, but the real question most operators should be asking is different: how does filter staging affect the life of your RO membrane — the single most expensive consumable in the system? The answer depends less on stage count and more on your water source, your daily volume, and how seriously you size your carbon filtration.

3-Stage Filtration

1 Combined Carbon/Sediment Filter
1 RO Membrane
1 DI Resin Filter

4-Stage Filtration

1 Sediment Filter
1 Carbon Filter
1 RO Membrane
1 DI Resin Filter

How the Two Configurations Differ

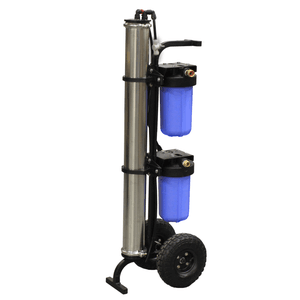

A 3-stage RODI cart combines sediment and carbon removal into a single dual-purpose cartridge, followed by the RO membrane and DI resin. Fewer housings, less weight, smaller footprint. For daily residential work on treated city water, this configuration handles the job cleanly — the combined filter catches chlorine and particulate in one pass.

A 4-stage RODI cart like the HydroCart Basic Eagle splits sediment and carbon into separate housings. The dedicated sediment pre-filter traps sand, rust flakes, and pipe scale before they ever reach the carbon. That matters if you regularly connect to well water, older municipal mains, or any source where particulate loads are unpredictable.

Carbon Filter Sizing: The Decision That Protects Your RO Membrane

Stage count gets the attention, but carbon filter sizing is the decision that actually controls long-term cost. The carbon filter's only job is chlorine removal — and if it's exhausted before you swap it, chlorine passes through to the RO membrane and attacks the thin-film composite. A membrane that should last 7–10 years can fail in under two.

Sizing guidelines based on daily use:

• 2.5 × 10 in carbon — budget-friendly, but replacement every 4–5 weeks under daily use. Suitable for part-time operators or as a secondary unit. The ProTool Carbon Filter 2.5 × 10 is the standard insert.
• 4.5 × 10 in carbon — a solid mid-range choice for crews running 3–4 days per week. The ProTool Carbon 4.5 × 10 fits carts with the standard 4.5-inch sump housing.
• 4.5 × 20 in carbon — the professional daily-driver filter. Six months or more between changes, even with full-time production. Available in the ProTool Carbon 4.5 × 20.

Going larger adds a few pounds to the cart. That trade-off is trivial compared to replacing a 4040 RO membrane early because you skimped on carbon capacity.

Weight vs. Longevity: A Field Calculation

Operators sometimes choose the smallest carbon filter to keep cart weight down. Run the numbers instead. A 4.5 × 20 housing adds roughly 5–6 lb over a 2.5 × 10, but it extends carbon life by 4–5× and keeps chlorine off the membrane for months longer. If your membrane lasts an extra 3 years because of proper carbon sizing, that is hundreds of dollars saved against a few extra pounds on the cart.

When to Choose 3-Stage vs 4-Stage

3-stage makes sense when you're on clean, consistent city water, you need maximum portability, and your daily volume is moderate. Carts like the ProTool 511 Pure Water Cart are built around this philosophy — lean, light, effective.

4-stage earns its keep when your water source varies job to job, when you pull from wells or older infrastructure, or when you run high daily volume. The separate sediment stage keeps the carbon filter focused on chlorine instead of clogging with particulate, which extends both carbon and membrane life. The ProTool HiFlo Pure Water Cart SS is a strong 4-stage option for full-time commercial crews.

Maintenance Priorities That Extend Membrane Life

• Monitor TDS religiously. A ProTool Inline TDS Meter lets you catch carbon exhaustion or membrane degradation before it shows up in your glass quality.
• Replace carbon on schedule, not on failure. By the time your post-carbon TDS rises, chlorine has already been hitting the membrane. Track gallons or calendar days and change early.
• Don't skip sediment pre-filtration even on a 3-stage cart. If your source water carries visible particulate, add an inline 40-micron mesh screen pre-filter ahead of the cart.
• Flush the RO membrane after every use day. Stagnant water accelerates biological fouling.

Bottom Line

Three stages or four — the membrane doesn't care about your stage count. It cares about whether chlorine reaches it. Size your carbon filter for your actual daily volume, replace it before it's exhausted, and the RO membrane will reward you with 7–10 years of service regardless of cart configuration.
