In the world of professional exterior cleaning, choosing the right chemical application method is critical for efficiency and profitability. Many contractors debate the merits of a standard downstream injector versus a high-draw xjet system. Is it worth the investment? When does it truly outperform your current setup? The confusion between the Original X-Jet Nozzle and the M5 model, or choosing the wrong nozzle size for your GPM, can lead to wasted time and subpar results on the job site.

This guide is your definitive resource for mastering the X-Jet. We're cutting through the noise to provide a professional breakdown of what this powerful tool is, how it works, and exactly when you should be using it to maximize your cleaning power and your profits. You will learn the key differences between an X-Jet and downstreaming, confidently identify the jobs that call for its unique capabilities, and select the correct model for your specific pressure washer. Get ready to achieve better, faster results.

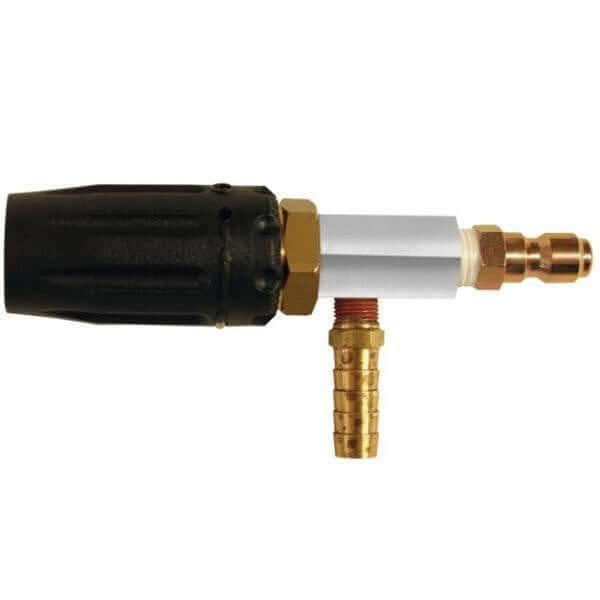

What is an X-Jet Nozzle? (And What It's Not)

First, let's clear up a common misconception: the X-Jet nozzle is a professional-grade pressure washing accessory, not a component used in 3D printing. In the exterior cleaning industry, an X-Jet is a high-performance, external chemical injection system. Its primary function is to apply cleaning solutions-such as sodium hypochlorite, soaps, and degreasers-efficiently using either high or low pressure, directly from your wand.

For a clear visual of how this professional tool operates, watch this overview:

The core advantage of an xjet is its ability to project cleaning solutions to greater heights-often reaching two to three stories high-safely from the ground. However, its most critical feature for any professional is that the chemicals completely bypass the internal components of your pressure washer. This means no corrosive materials ever run through your pump, hose, reel, or trigger gun, which dramatically extends the service life of your valuable equipment.

The Core Principle: External Chemical Injection

Unlike a standard downstream injector that pulls chemicals into the water line after the pump, the X-Jet introduces the solution right at the nozzle tip. It operates using a venturi effect, a core concept in fluid dynamics and nozzle design principles, where the high-velocity water stream creates a vacuum that siphons the chemical from a separate container. This external injection method is the key to protecting your pressure washer's sensitive parts from aggressive cleaning agents.

Components of a Standard X-Jet Kit

A complete X-Jet kit provides everything a professional needs for versatile and precise chemical application. These durable kits typically include:

• Nozzle Body: The main assembly, usually equipped with a quick-connect plug for fast and secure attachment to your pressure washing wand.
• Interchangeable Nozzles: A long-range (or "shooter") nozzle for reaching high peaks and a close-range fan nozzle for broader, lower applications like siding or concrete.
• Chemical Hose: A durable, flexible hose with an integrated strainer to prevent clogs and a ball valve for immediate on/off control of the chemical flow.
• Proportioners: A set of color-coded plastic inserts that fit into the nozzle body, allowing you to accurately control the chemical-to-water dilution ratio for any specific cleaning task.

X-Jet vs. Downstream Injector: A Professional's Comparison

For professional exterior cleaning contractors, the choice between using an xjet nozzle and a standard downstream chemical injector is a critical decision that directly impacts job efficiency, chemical costs, and equipment longevity. While both are essential tools for applying cleaning solutions, they operate on different principles and are suited for distinct applications. Understanding their core differences is fundamental to maximizing performance and profitability on the job site.

This comparison breaks down the key performance factors to help you determine the right tool for your specific pressure washing or soft washing task. Ultimately, the most well-equipped professional will have both options available in their arsenal.

Reach and Vertical Height

The most immediate advantage of the X-Jet is its superior reach. Because the chemical is introduced at the end of the line, right at the nozzle, there is minimal pressure loss. This design allows the system to project a high-volume, low-pressure stream of solution up to 40 feet or more, depending on your machine's GPM. This capability is indispensable for safely and efficiently treating 2- and 3-story buildings from the ground, eliminating the need for ladders or lifts. In contrast, a downstream injector's reach is often limited by the total length of the pressure hose and the inherent pressure drop, typically maxing out at a much lower height.

Chemical Strength and Versatility

Herein lies the X-Jet's primary advantage: chemical potency. The X-Jet siphons solution directly from a separate container, allowing you to apply chemicals at their original strength or with minimal dilution. This is a game-changer for difficult jobs like treating heavy algae on siding or applying professional-grade roof cleaning mixes that require a strong, precise ratio. Downstream injectors, which pull soap after the pump but before the main hose, dilute the chemical significantly-often at ratios of 10:1 to 20:1-rendering them less effective for stubborn organic stains that demand a more aggressive approach.

Equipment Protection and Longevity

By introducing cleaning agents at the nozzle, the X-Jet ensures that corrosive chemicals like sodium hypochlorite never enter your primary pressure washing system. This design is crucial for protecting your pump, unloader, high-pressure hose, and trigger gun from premature wear and failure. Running harsh chemicals through these components will inevitably lead to corrosion and costly repairs. Maintaining equipment integrity is a core component of professional pressure washer safety standards, and bypassing your main system with an X-Jet is a smart, preventative measure that extends the life of your most valuable assets.

Choosing Your Model: Original X-Jet vs. X-Jet M5

When selecting an xjet nozzle, contractors have two primary, professional-grade options: the Original X-Jet and the more advanced X-Jet M5. Both models deliver exceptional performance for downstreaming chemicals and soft washing surfaces. The core function-siphoning chemical after the pump and unloader-is identical. The key difference lies in on-the-job versatility and workflow efficiency, which will guide your decision based on your typical projects and budget.

The Original X-Jet

X-Jet Original Nozzle (only) 4.0 to 4.5 gpm 4000psi

$91.55

The X-Jet Original Nozzle is designed for professionals seeking efficiency and performance in high-pressure applications. This nozzle is compatible with pressure washers producing between 4.0...… read more

The Original X-Jet is the classic, time-tested workhorse of the industry. It is a highly reliable and cost-effective solution for professionals who need straightforward soft washing capability. Operation is simple: use the included ball valve to switch between drawing soap at low pressure and rinsing at high pressure. To change your spray pattern from a wide fan to a direct stream, you must manually swap out the separate, interchangeable nozzle tips included in the kit.

The X-Jet M5 Adjustable Nozzle

X-Jet M5 Variable Spray

$163.20

X-Jet M5, Adjustable Chemical Sprayer  Keep chemicals out of your power washer, and control spray angle with just a twist.The M5 nozzle is an easy...… read more

5.0 to 6.5 gpm (16k) - $163.20 3.0 to 3.5 gpm (09k) - $163.20 4.0 to 4.5 gpm (13k) - $172.90 7.0 to 8.0 gpm (20k) - $172.90 8.0 to 9.0 gpm (25k) - $174.70 2.0 - 2.5 gpm (07k) - $163.20

The X-Jet M5 offers a significant upgrade in efficiency. Its defining feature is a twistable, fully adjustable nozzle that eliminates the need to carry and change separate tips. With a quick turn, a professional can transition from a long-distance stream-perfect for reaching high gables and dormers-to a wide, gentle fan spray for rinsing large sections of siding. For jobs that require frequent changes in spray patterns, the M5 is a major time-saver that streamlines your workflow and keeps you moving.

Sizing Your X-Jet to Your Machine's GPM

Proper performance from any xjet nozzle is entirely dependent on matching it to your pressure washer’s flow rate, measured in Gallons Per Minute (GPM). Selecting the correct nozzle size ensures optimal chemical draw and spray distance. Using an undersized or oversized nozzle will lead to poor performance, weak chemical application, and wasted time on the job.

Use this simple chart to match your machine to the correct X-Jet nozzle size:

• X-Jet #9: For machines rated 3 to 4 GPM
• X-Jet #13: For machines rated 5 to 6 GPM
• X-Jet #16: For machines rated 7 to 8 GPM

Ensure you have the right tool for your equipment to guarantee professional results. Shop our full selection of X-Jet nozzles and kits.

Practical Applications: When to Use an X-Jet Nozzle

Understanding the theory is one thing; knowing when a tool will make you faster, safer, and more profitable is another. The xjet is a professional-grade solution for specific, high-stakes scenarios where standard downstream injectors fall short. If you encounter the following situations on the job, the X-Jet nozzle is often the superior choice.

Scenario 1: Washing Multi-Story Buildings

Cleaning the siding on a two or three-story building presents a significant challenge. Using tall ladders is slow, physically demanding, and introduces a major safety risk. The X-Jet nozzle eliminates this hazard by projecting a powerful, high-volume stream of cleaning solution up to 40 feet. This allows your team to apply soap to upper levels and eaves efficiently and safely from the ground, dramatically increasing job-site speed and reducing liability.

Scenario 2: Applying Strong or Corrosive Chemicals

When your job requires aggressive cleaning agents, protecting your equipment is paramount. Running a strong sodium hypochlorite (SH) mix for roof cleaning, a heavy-duty degreaser, or certain masonry acids through your pump, reel, and hose will cause premature wear and catastrophic failure. Because the X-Jet draws chemicals after the pressure washer, it completely bypasses your primary equipment. This makes it the essential tool for applying corrosive materials without risking expensive damage to your rig.

Scenario 3: When Precise Chemical Ratios Are Key

Consistency is the mark of a professional. Unlike a standard downstream injector with a variable draw rate affected by hose length and pressure, the X-Jet system provides repeatable, accurate dilution ratios. It includes a set of color-coded proportioners that allow you to dial in the exact chemical mix for any job, from a light house wash to a heavy-duty stain removal.

• Repeatable Results: Deliver the same high-quality cleaning on every job.
• Chemical Cost Control: Use only the amount of chemical you need, preventing waste.
• Predictable Performance: Eliminate the guesswork of down streaming for more reliable outcomes.

For professionals who demand this level of control, safety, and efficiency, the X-Jet is an indispensable tool. Explore our complete range of professional pressure washing solutions to optimize your operations.

Setup, Operation, and Pro Tips for Optimal Performance

A high-performance tool like the X-Jet nozzle requires proper setup and maintenance to deliver consistent, professional-grade results. Following a structured process not only ensures accurate chemical application but also significantly extends the life of your equipment. This guide provides the essential steps and professional advice for maximizing your investment on every job.

Initial Setup and Connection

Proper assembly is straightforward and critical for safe, effective operation. Before you begin, ensure your pressure washer is off. Follow these steps for a secure connection:

• Connect the Nozzle: Attach the X-Jet body to your pressure washer wand using the standard quick-connect fitting. A firm push and a clear click will confirm it is securely in place.
• Insert Proportioner: Select the correct colored proportioner for your desired dilution ratio and insert it into the hose barb on the nozzle body.
• Attach Chemical Hose: Firmly press the chemical intake hose onto the barb, ensuring a tight seal over the proportioner. Submerge the weighted filter at the other end of the hose completely into your cleaning solution.

Using the Proportioner Chart

The included proportioner kit is the key to precise, repeatable chemical mixing without batch mixing. The chart correlates each colored proportioner with a specific water-to-chemical dilution ratio. For a common house wash mix, you might need a 10:1 ratio, which is achieved by using the pink proportioner. This system eliminates guesswork and improves on-site efficiency.

Pro Tip: Always start with a weaker solution (a higher dilution ratio) than you think you need. Test on a small, inconspicuous area. It is far easier to strengthen your mix by switching to a different proportioner than to correct over-application of a chemical that is too strong.

Maintenance and Cleaning

Consistent cleaning is the most important factor in your equipment's longevity. Chemical residue, especially from sodium hypochlorite, can crystallize and clog the injector, leading to poor performance or complete failure. After every job, perform this simple flush routine:

1. Remove the chemical hose from your cleaning solution.
2. Submerge the hose into a bucket of clean, fresh water.
3. Run your pressure washer for at least 60 seconds, allowing the clean water to flush the entire system-from the hose to the nozzle tip.

This quick step prevents buildup and ensures your xjet is ready for the next project. Should you ever need them, you can find replacement parts and accessories for your X-Jet here.

Integrating the X-Jet Into Your Professional Arsenal

In conclusion, the xjet nozzle stands out as an essential, professional-grade tool for any serious exterior cleaner. Its ability to pull strong, undiluted chemical mixes without sending them through your pump, hose, and gun provides unmatched application power and protects your valuable equipment. By understanding the core differences between the Original and M5 models and mastering the simple setup process, you gain a significant advantage in efficiency and effectiveness, especially when tackling tall buildings or heavily soiled surfaces that require a potent pre-soak.

Ready to add this high-performance tool to your rig? J Racenstein is your definitive one-stop shop for all pressure washing solutions. We're not just a supplier; we're a partner dedicated to your success. That’s why we provide expert advice from seasoned industry professionals and maintain a massive, in-stock inventory to ensure you get what you need with fast shipping. We have the equipment and the expertise to help you get the job done right.

Browse our complete collection of X-Jet products and find the right fit for your rig. Equip your business with the best and watch your productivity soar.
